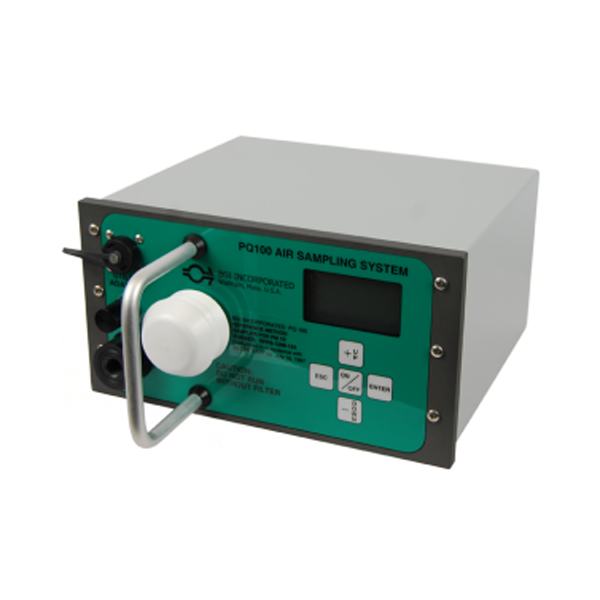

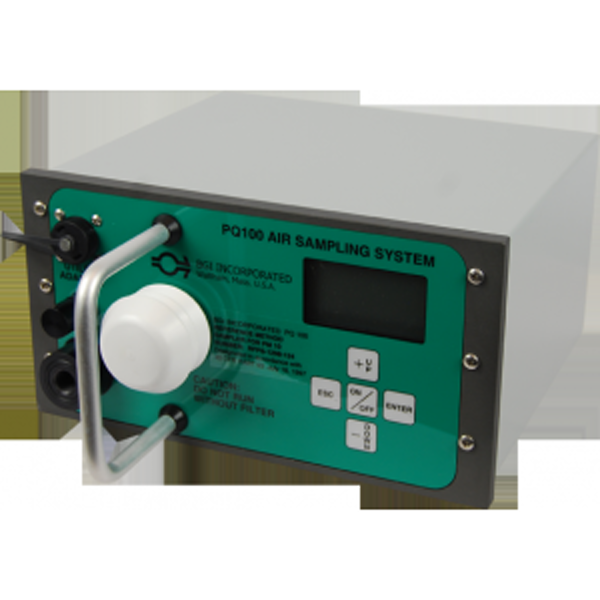

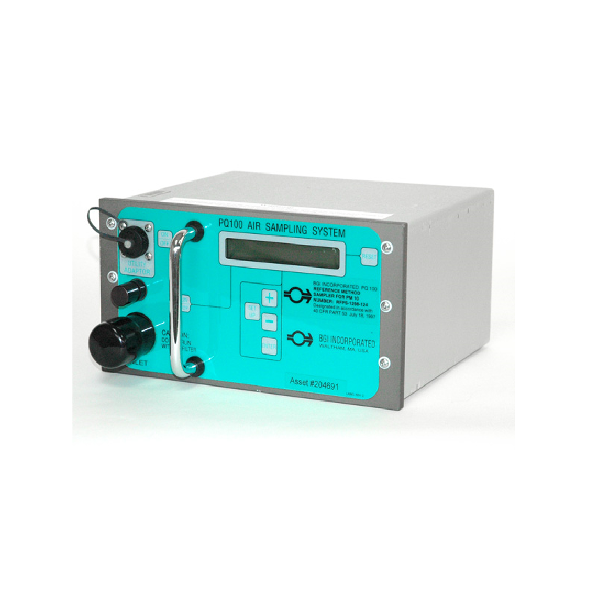

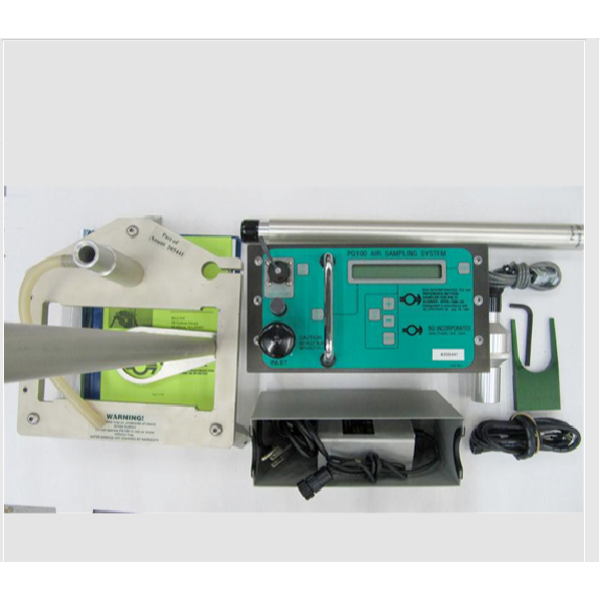

BGI PQ100 Pump
The BGI PQ100 Pump provides accurate and consistent air flow between 2 – 25 liters per minute
using microprocessor and mass flow control. Intuitive firmware allows sampling periods to be pre-
programmed and begun without user intervention. The PQ100 display gives elapsed time, total
sample volume, battery state, and instantaneous flow rate.
Applications
- Ambient PM Monitoring
- Hexavalent Chromium and other heavy metal sampling
- Remote Site Monitoring
- Suitable for system integration projects
Features
- Accurate EPA Specified Flow Rate to ±0.5%
- Precision Flow to ±2%
- Download Software Included
- Complete System is Portable and easily usable Indoors or Out
- Weatherproof Enclosure Included
- 24 Hour Sample on Internal Battery
Specifications
PQ100 Weight : 19 lbs (8.62 kg)
PQ100 Pump Dimensions : 10 x 6 x 9.7 in. (25.4 x 15.2 x 24.6 cm)
Flow Control : 2 – 25 LPM
Flow Precision : ±2%
Data Output : RS232 connection
Internal Battery : 12V 12Ah short circuit protected
Charging System : 120 VAC (60 Hz) or 240 VAC (50 Hz)
