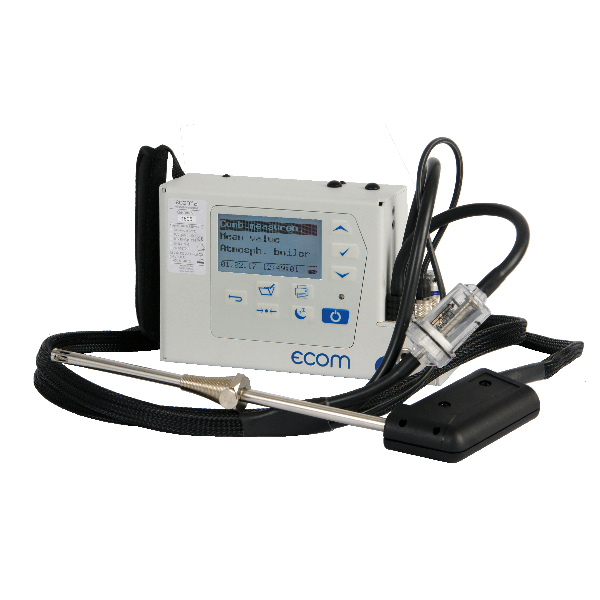

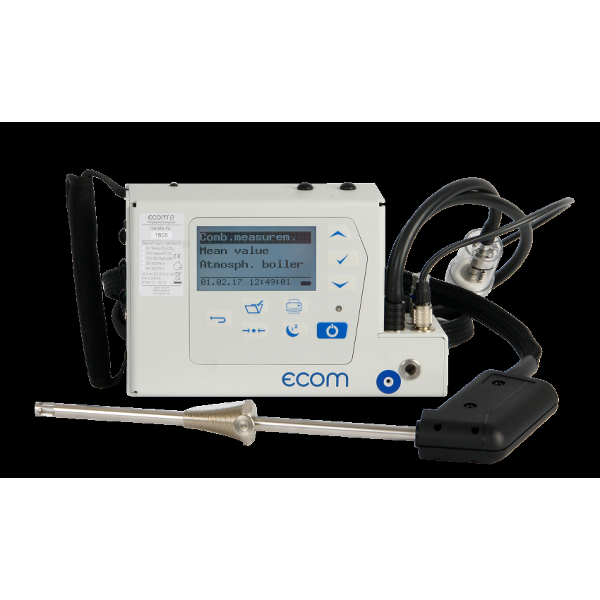

ECOM ecom-B Flue Gas Analyser
EXTREMELY handy.
- O2/CO (H 2 -comp.) Longlife sensors (lifespan 5-6 years by normal operation)
- High value battery (long operation time)
- CO sensor overload protection
- Aluminium housing (ultralight)
- Perfect value for money ratio
- Additional NO sensor (options)
- Bluetooth data transfer (options)
Application:
- Heating Applications
- For HVAC crafts
- For chimney-sweeps
- For heating service engineers
Part No
1) ECOM ecom-B, Part No. 102802 O 2 /CO (H 2 -Compensated)
2) ECOM ecom-B, Part No. 103277 CO (non H 2 -Compensated)
- Automatic CO switch-off and fresh air purge (without measurement interruption)

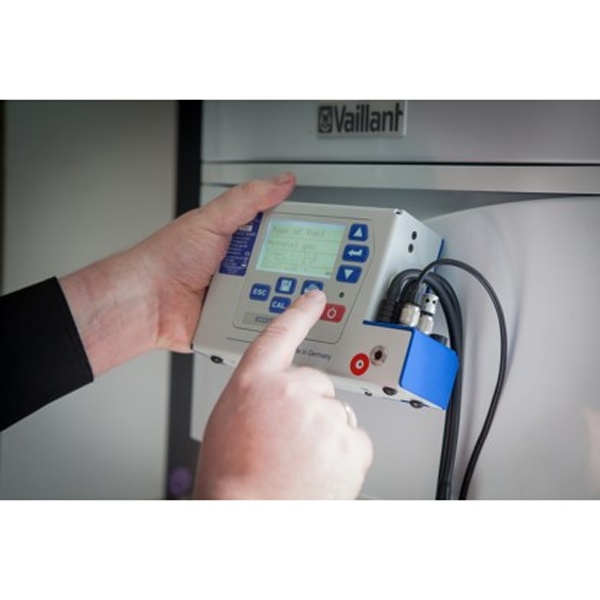

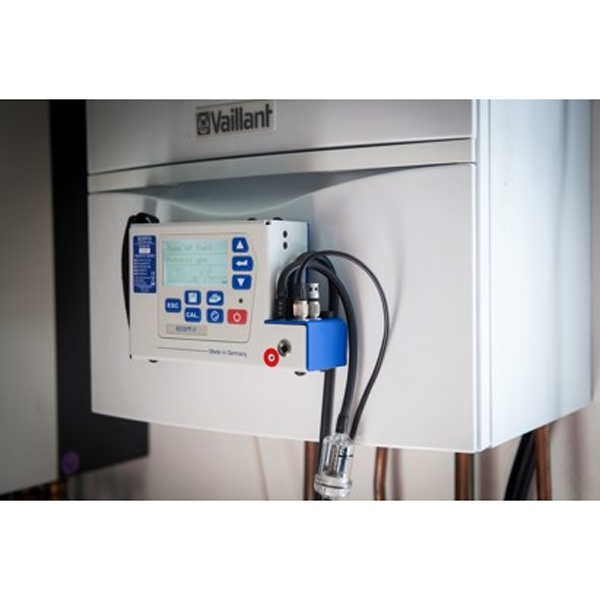

- Robust and light aluminium housing fitted with magnets on the back
- Integral lithium-ion battery with extended operation time
- Complete with sampling probe incl. fication cone and 3-chamber tubing
- T-Room probe
- Charger
- Condensate trap with moisture-absorbing pad and optical monitoring
- Internal memory
- Calibration Certificate – generated after 100% sensor calibration in climatic chamber
- Free PC Software
- Measurement Range: O 2 (0-21%); CO (0-4000 ppm; H2-compensated); Air Temperature (0-
99 o C); Gas Temperature (0-500 o C), draft (+/- 100 hPa); differential pressure (+/-100 hPa) via
opt. pressure tubbing; NO (option)
Dimensions
(L x H x W): approx. 200 x 125 x 75 mm
Weight
approx. 1.5 kg (complete with probe and sampling tubing)
Accessories
- Instrument w/magnetic fastener
- 5.4ft sample line
- 6in probe with pistol grip (max temp 500C)
- Particulate filters, 10pk
- Water trap expandable filters, 5pk
- Calibration magnet
- Ambient temperature sensor stick (installed)
- External power pack
- ECOM folder with instruction manual & calibration certificate
- Carrying Shoulder Strap
- Canvas Storage Pouch
ECOM Ecom-B Handheld Flue Gas Analyzer
