ECOM ecom-DP3 Pressure Meter
- Fully automatic pressure checks
- Internal pump for pressure build-up up to 1.5 bar
- Integral thermal quick-printer
- Fully automatic leakage rate determination within a few minutes
(gas sampling not required)
- Suitability check in no time
- Safe and fully automatic check routines
- For gas (TRGI), liquid gas (TRF), water (TRWI) and sewage pipes checks
- For further measurements up to 40 bar (with external sensors)
- PC software included in delivery scope
- Measuring instrument fitted in ultra-light and robust aluminium housing
- Temperature monitoring (0-100°C by 0,1 °C resolution) via internal thermocouple
- Integral thermal quick-printer for the documentation of safety-related checks (incl. printer
paper roll / spare roll)
- High-value Lithium-Ion battery
- Data recording on SD card (easy data transfer to PC)
- Hardtop transport case made out of stable plastics
- PC software on USB drive
Dimensions
(L x W x H): Approx. 430 x 170 x 380 mm
Weight
Approx. 8 kg (complete with accessories in transport case)
Part No
1) ECOM ecom-DP3 Pressure Meter

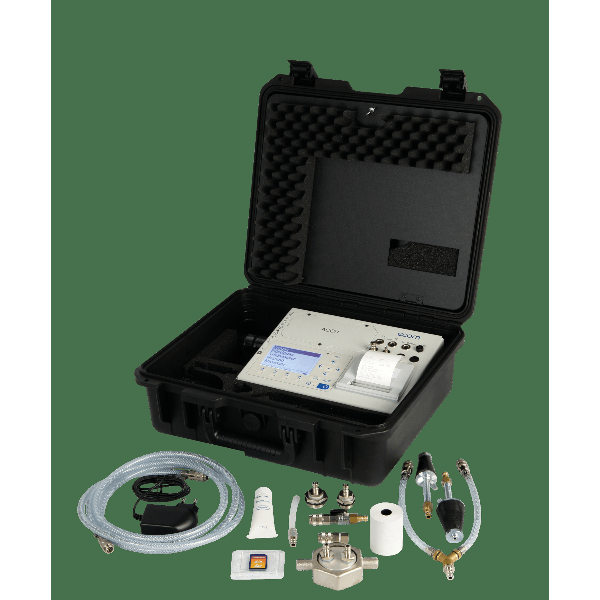

Further accessories included in the delivery scope:
- Silicone tubing (100 mm) with quick-coupling for connection at measurement connectors
- Tubing (2.8 m) with quick-couplings
- Y-formed tubing adapter
- Two test stopples, conic (1/2“- 3/4“ // 3/4“ – 1 1/4“)
- T-pieces with overpressure valve with quick-coupling
- Two high-pressure check stopples (3/8“ – 1/2“ // 3/8“ – 3/4“) with quick-coupling
- Shut-off valve, mini ball valve and quick-coupling
- One-pipe counter cap
- Sealing stopple with quick-coupling
Designed to Perform the Following Measurements:
- Stress check according to TRGI 2018
- Tightness check according to TRGI 2018
- Full-automatic leakage rate determination without necessity of a sampling container
- Check of liquid gas pipes according to TRF
- Check of drinking water systems according to DIN EN 806-4 (with optional external pressure sensor),
- Check of heating plants according to DIN 18380 (with optional external pressure sensor)
- Check of sewage plans according to DIN 1610 (with optional sealing bladder set),
- Heating-Check according to DIN EN 15378 (option)
- 4-Pa test (option)
- Free specifiable pressure measurements
- Differential temperature (with optional fitting temperature sensors)
Options
- Heating-Check according to DIN EN 15378
- 4-Pa test
- Parallel pressure measurement possible (1500 hPa as well as one of the above measurement
ranges)
