ECOM ecom-DPK Pressure Check Kit for all Test
EXTREMELY Price-Performance Orientated
- For all gas pipe networks according to TRGI
- For pressure measurements at gas heating and gas burners
- Comprehensive accessories as part of delivery scope
- Transport case with storage space for optional thermal printer and Ecom-LSG leak detector
- Min./Max. function (storage of lowest or highest value)
- Freeze function (manual temporary storage of a specific
measurement value)
- Units changeable (hPa, cmH2O, mmHg, PSI, H2O, Hg)
- Adjustable damping
- Changeable parameters for stabilisation time, measurement
time and tests
- Data storage and data logging
Application:
- Heating Applications
- Engines Applications
- Combustion Applications
- Industrial Applications
Part No
1) ECOM-DPK, P/N: 3140121 Pressure Measurement Set
2) ECOM ecom-LSG, P/N: 102145 Gas Leak Detector
3) ECOM ecom-P, P/N: 104630 Infrared Printer
- Measurement instrument with backlit graphic display
- Power supply: 3 one-way batteries AA 1.5 V (Mignon)
- Dimensions (L x H x W): ca. 170 x 75 x 35 mm
- Weight: approx. 300 g (with batteries)
- Free downloadable PC Software “ecom-DP Logger”
able for the Following Measurements:
- Stress test according to TRGI 2008
- Tightness test according to TRGI 2008
- Differential pressure measurements at gas heating/gas burners (connection pressure, nozzle
pressure, operating and stand-by pressure)

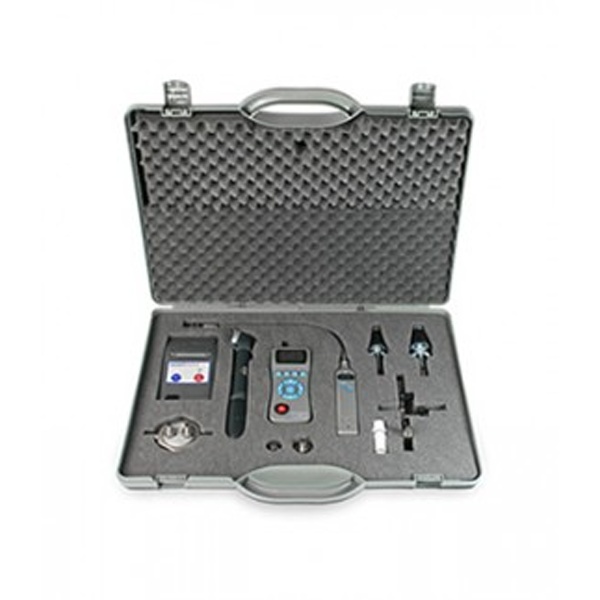

Accessories:
The ecom-DP can be turned into a pressure check kit while completing with the needed accessories
and the storage transport case. Rounding-up with an ecom-LSG, gas leak detector would be just
prefect to track possible leakages while performing the usability check.
- 1 x ecom-DP differential pressure instrument, range 0-1.5 bar
- 3 x connection hoses, 4 ft. long with quick connect fittings
- 1 x conic test stopple 1/2"- 3/4" and one 3/4" – 1 1/4"
- 1 x crosspiece with safety
- 1 x compressed-air pump to build-up of test pressure in pipe
- 1 x one-pipe counter cap with swivel nut and quick fittings
- 1 x high-pressure test plug 3/8" to 1/2" and one 3/8" to 3/4" with quick-fittings delivered
- 1 x Robust transport case
Optional Accessories :
- 2 nd Pressure sensor (0-1500 hPa resp. 0 -70 hPa) for two parallel pressure measurements
