ECOM ecom-EN3-F Flue Gas Analyser for Industrial Applications
EXTREMELY usable.
Basic : O 2 , CO, NO, NO 2
Optional EC : SO 2 , H 2 S, H 2 , CO%
Optional IR : CO 2 , C x H y
- Compact analyzer with sampler gas cooler
- For perfect NOx / SO2– measurements
- Up to 6 sensor options ( Longlife sensors)
- Possible CO2– direct measurement via IR sensor possible
- Hydrocarbons measurement via IR sensor possible
- CO sensor overload protection without measurement
- Electronic condensate monitoring

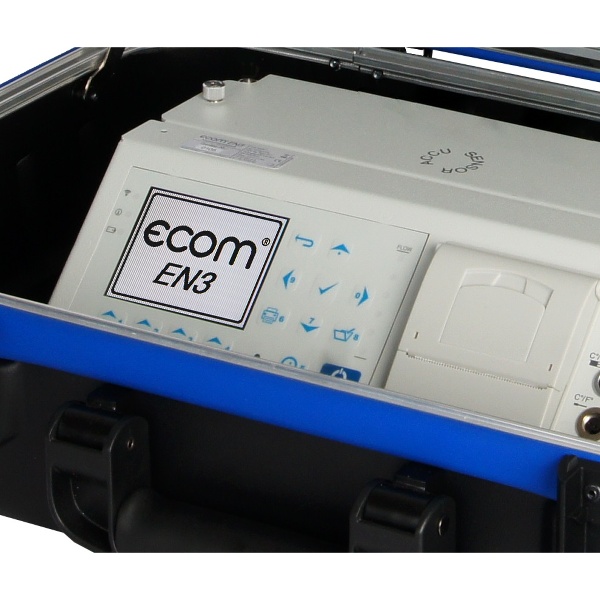

- TFT color display and backlit keypad

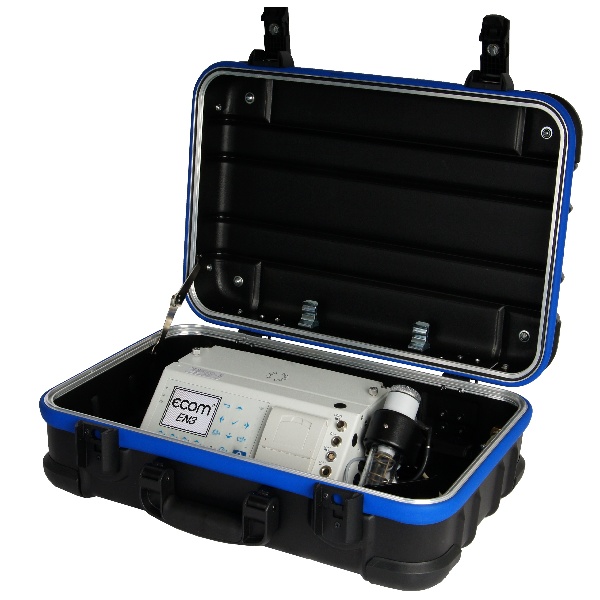

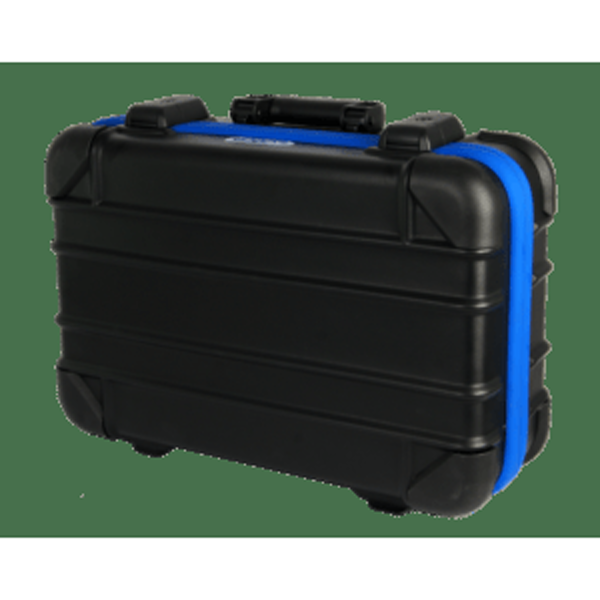

- Aluminium housing, fitted in hardtop transport case
Part No
1) ECOM ecom-EN3-F Flue Gas Analyzer
- With O2 /CO (H2 comp.)/ NO / NO2 -Longlife sensors
- Automatic CO switch-off and purge

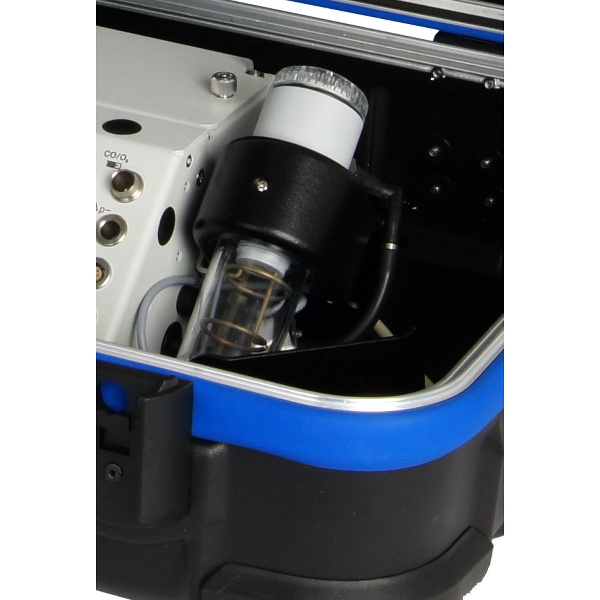

- Electronically monitored sample gas cooler
- Sampling probe with thermocouple, fixattion cone with fixation magnet, 3-chamber sample
tubing
- Low-maintenance, high-performance pump (2,6 l/ min.)
- T-Room sensor / T-Room stick (according to request resp. model variant)
- Integral thermal quick-printer
- TFT color display
- LED flow display
- Powerful Lithium-Ion battery
- Calibration certificate
Dimensions
- (W x H x D): approx. 550 x 380 x 185 mm
Weight
- Approx. 8.5 kg (complete with sampling system)
Options
- NOx- calculation via NO measured value or NOx- measurement possible
- Built-in soot measurement via heated sampling probe
- Higher resolution and accuracy in NOLow (0 – 500 ppm) bzw. NO2 Low(0 – 100 ppm) range
- Additional sensors possible (SO2, H2S, H2, CO%)
- Possible CO2 direct measurement with IR sensor
- Hydrocarbons measurement via IR sensor possible
- Wi-Fi or Bluetooth Low Energy option
( Options package biogas for raw gas analysis )
(Expansion for ENGINE variant)
- CH4 (NDIR) sensor, 0-100 %
- H2S (EC) sensor, 0-5000 ppm
- Viton sampling tubing 3 m
ECOM Ecom-EN3-F Flue Gas Analyzer datasheet
