ECOM ecom-J2KNpro TECH Mobile Flue Gas Analyser
Combination of 5 Measurement Methods
Base : O 2 , CO
Optional EC : NO, NO 2 , H 2 S, H 2 , CO%, , C x H y
Optional IR : CO 2 , C x H y , CO%, SO 2
Optional CLD/PAS : NO, NO x , NO 2
Emission analysis in challenging environments
- extremely robust but also mobile
- the perfect add-on to a stationary system
Free combination of the measurement methods, for each application
- cost-effective electrochemical sensors for high measurement ranges
- physical sensors for maintenance-free and wear less measurements, even if overloaded
- compact design: PAS module, CLD with converter, NDIR
Operation with far-reaching radio remote control
- comfortable control and stable monitoring from the distance

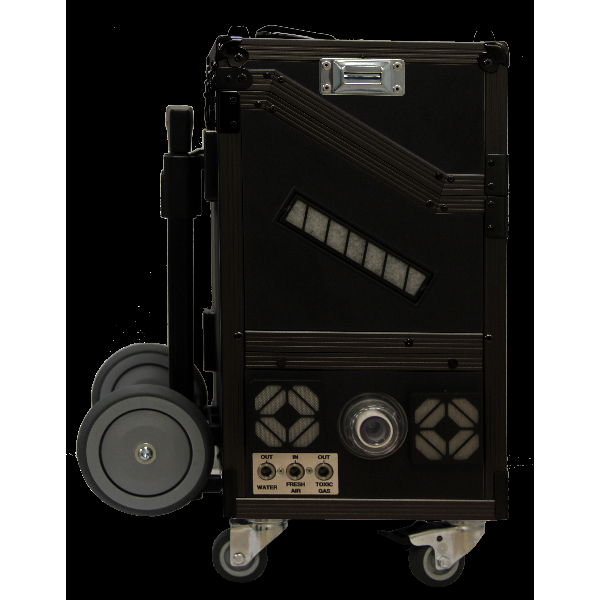

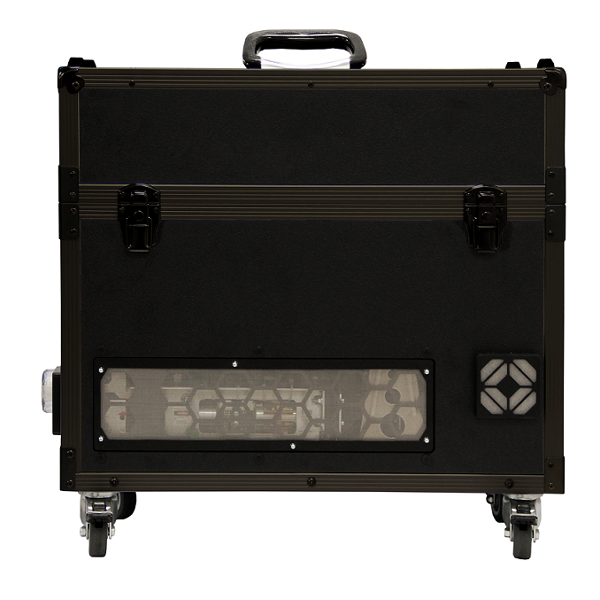

Easy transportation in stable aluminium-framed case
- optional trolley for easier mobility
- additional case for heated sampling system storage
Short controls or continuous measurements
- ready to use for short and long term measurements
- high-quality sensors, high-performance sample gas conditioning, reliable filtering, wireless remote
control with high coverage and various data output possibilities:
EVERYTHING integrated in one and the same system
Part No

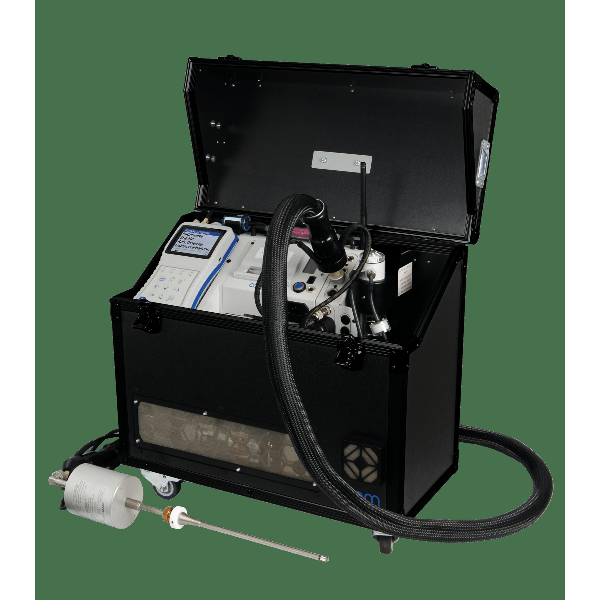

1) ECOM ecom-J2KNpro TECH Flue Gas Analyzer
- For free combinable configuration of required gas sensors (O 2 sensor part of the basic delivery
scope)
- Designed for quasi-stationary measurements with programmable measurement intervals
- Integral thermal quick-printer
- Internal heating/ventilation cooling depending on ambient conditions (0-40°C ambient
temperature)
- Comprehensive options for data processing (i. a. via WiFi data transfer)
- Stainless steel gas cooler for perfect, dry gas preparation
- Electronic condense monitoring as well as automatic condense evacuation
- Status display for basic functions, settings and warning messages
- Complete in ultra light-weight, robust aluminium housing
- T-Room probe/T-Room stick (according to retest or type) in spacious aluminium-framed transport
case including trolley
- Incl. all necessary filters, printer Paper etc. – all filters and consumables exchangeable by user
- Free downloadable PC Software

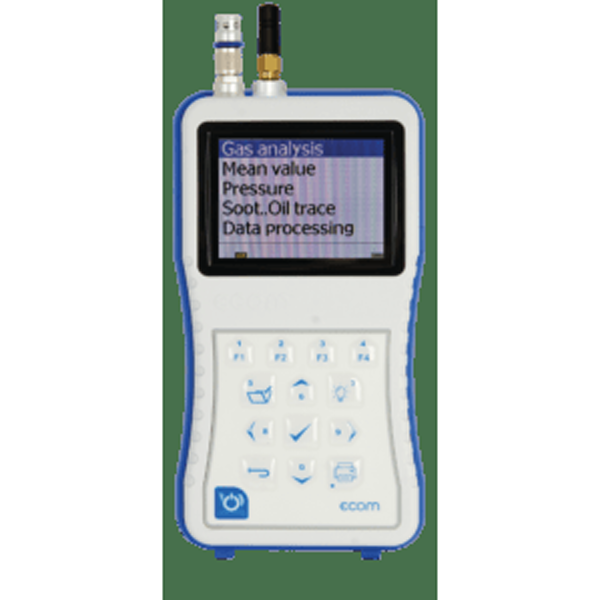

Radio Remote Controller
(included in every standard delivery scope)
- Large coverage to bridge distances between measurement point (flue gas opening) and
adjustment point (e. g. burner, control panel, etc.)
- Incl. thermocouple inlet, mini USB connection (data transfer to laptop/PC), SD card slot
- Backlit keypad as well as high-value colour TFT display
- Display, printout and storage of measurement data
- Complete instrument operation command (a. o. manual start and end of measurements, data
processing, …)
- Stable data processing via radio (highest possible avoidance of interference, bridging of metal or
concrete barriers , automatic connection, no abrupt connection interruption while keeping all
measurement data as well as automatic re-connection of radio communication)
Dimensions
- (L x H x D): 500 x 650 x 250 mm (measurement instrument and heated system on trolley)
Weight
- Approx. 28 kg (analyser and heated system on trolley)
Options
- Heated sampling probe incl. PTFE filter and thermocouple for the measurement of flue gas
temperature
- Heated sampling hose for loss-free gas transport (adjustable temperature)

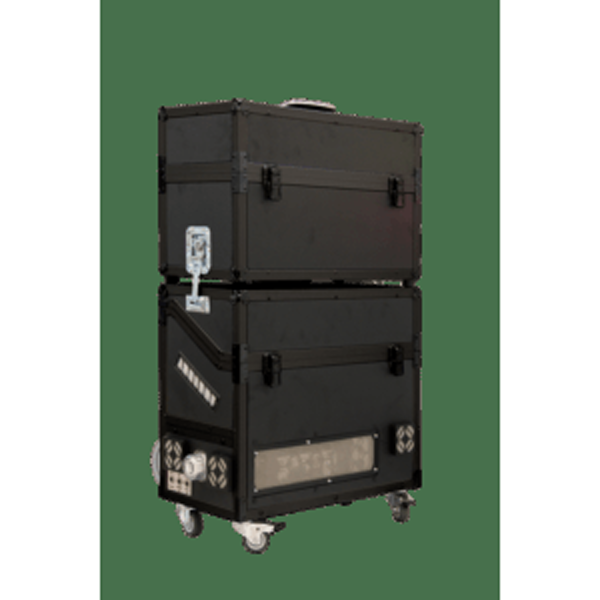

- Stowage into optional, separate aluminium-framed transport case – integrated into the ecom-
J2KNpro-TECH transport system
Heated Sampling System

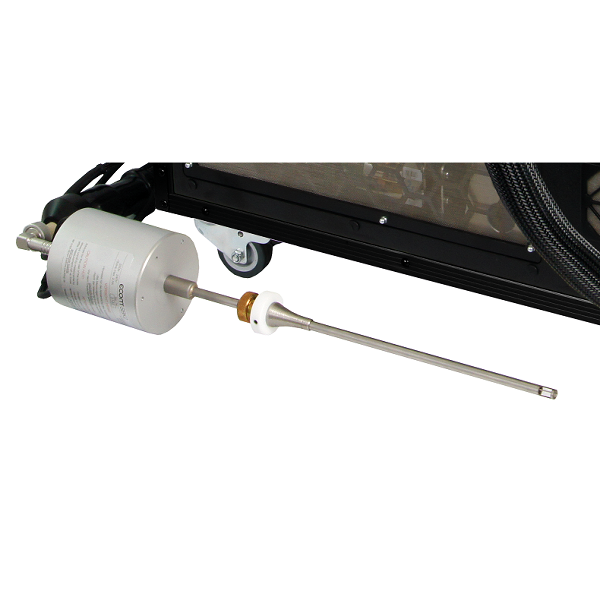

- Heated sampling probe incl. PTFE filter and thermocouple for the measurement of flue gas
temperature
- Heated sampling hose for loss-free gas transport (adjustable temperature)
