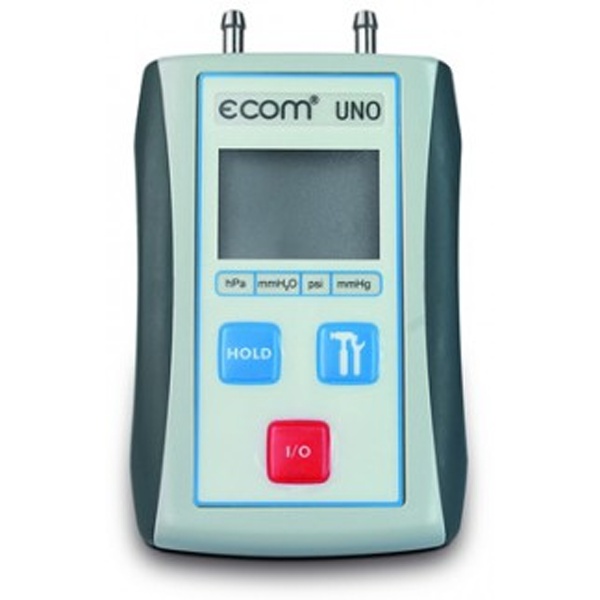

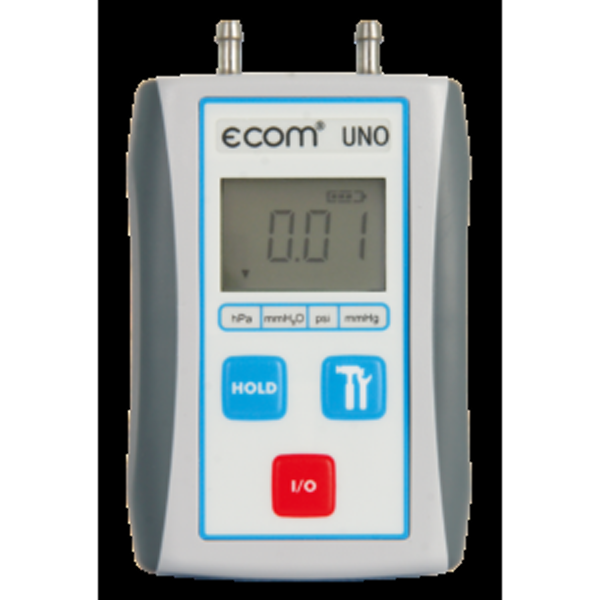

ECOM ecom-UNO Pressure Measurement For Carbon Monoxide Detection (CO) in Ambient Air

ECOM ecom-UNO Pressure Measurement For Carbon Monoxide Detection (CO) in Ambient Air

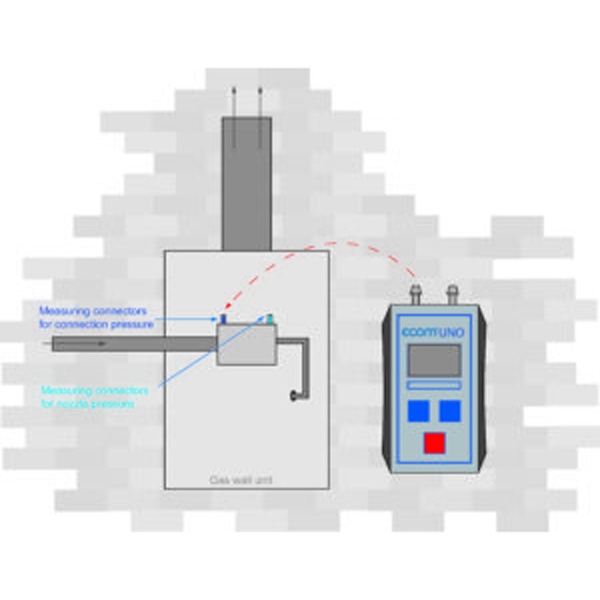

  • Precise and fast differential pressure measurements to determine device connection pressure
    (flow pressure), nozzle pressure (flow pressure), gas pressure (system pressure) as well as static
    pressure
  • Fits in any shirt pocket – small and compact
  • Magnetic attachment on the back
  • Four switchable units
  • Includes batteries and protective pouch



Application:

  • Heating Applications
  • Engines Applications
  • Combustion Applications
  • Industrial Applications



Part No

1) ECOM ecom-UNO, P/N: 102108 Differential Pressure Measurement Pocket Size

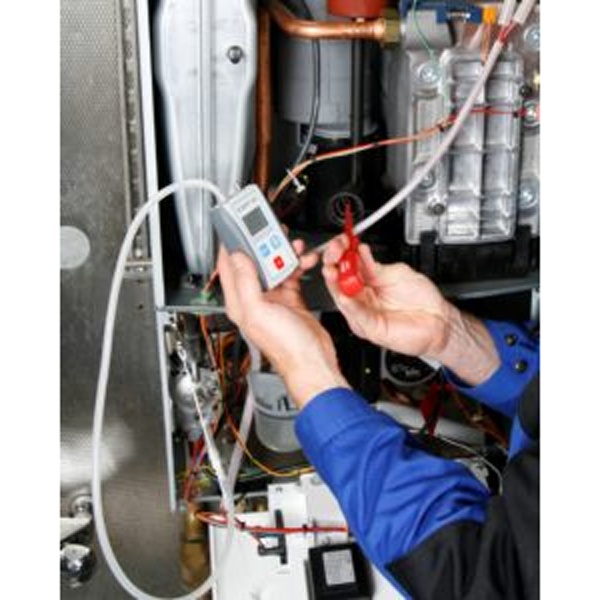

For Adjustments of Gas Burners/Gas Heatings

  • Four changeable units: hPa/mbar, mmH2O, psi, mmHg
  • Ranges: ± 200 hPa, ± 2038 mmH2O, ± 2.9 psi and ± 150 mmHg
  • Accuracy: 1%
  • Power supply : 2 current batteries type AA 1.5V (Mignon)
  • Power consumption : Approx 20mA
  • Storage Temperature : -20 o C to +70 o C
  • Operation Temperature : 0 o C to +40 o C
  • Dimension : Approx. 106 x 64 x 28 mm (H x W x D)
  • Weight : Approx. 150 g (with batteries)



ECOM Ecom-UNO For carbon Monoxide Detection (CO) datasheet
