HAGNER DIGITAL LUX/FOOT-CANDLE PHOTOMETER TP200 & TP200-X

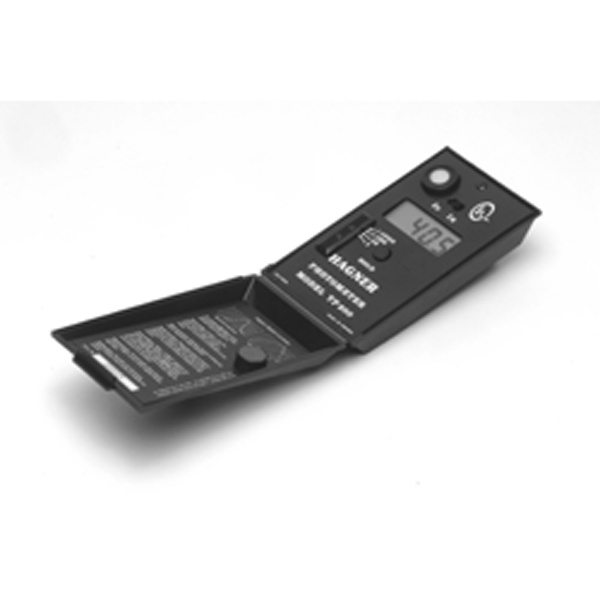

The Hagner Digital Photometer, model TP200, is a small, handy and extremely easy-to-use
instrument for accurate measurement of illuminance. It has two ranges for measurement of both
metric, lux (Ix) and imperial, footcandle (fc) units. The scales are chosen by setting the switch above
the digital display. The sensitivity ranges are 0.1-200,000 Ix and 0.01-20,000 fc. With both automatic
zeroing and on/off switch, the only controls needed are a four-position range selection switch and a
hold button for retaining the display value.

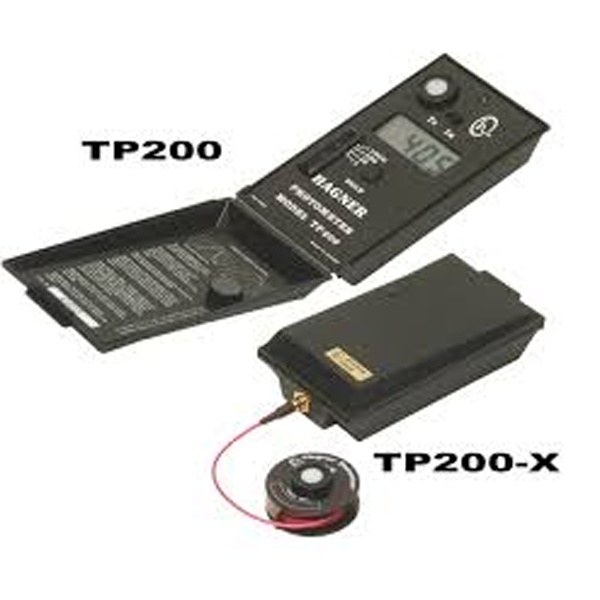

The TP200-X has been designed for measurement of illuminance levels in places where there is a risk
that the operator shades a built-in detector or in places which are difficult to access. The TP200-X
has the detector connected with a 2 meter long cable. An extension cable can also be connected.
Specification

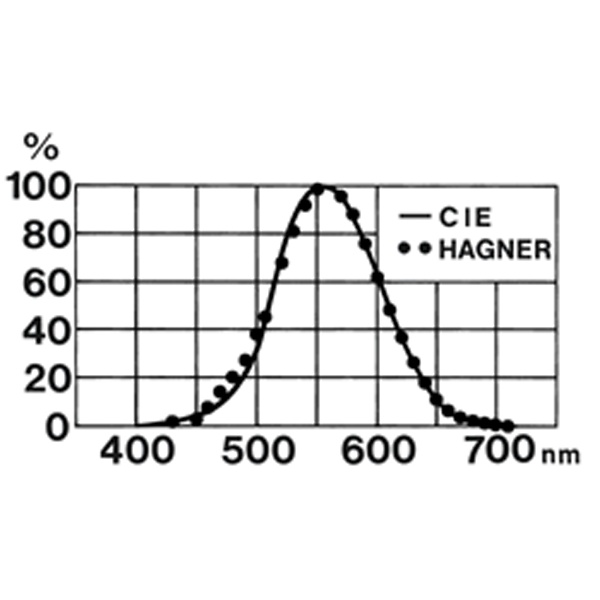

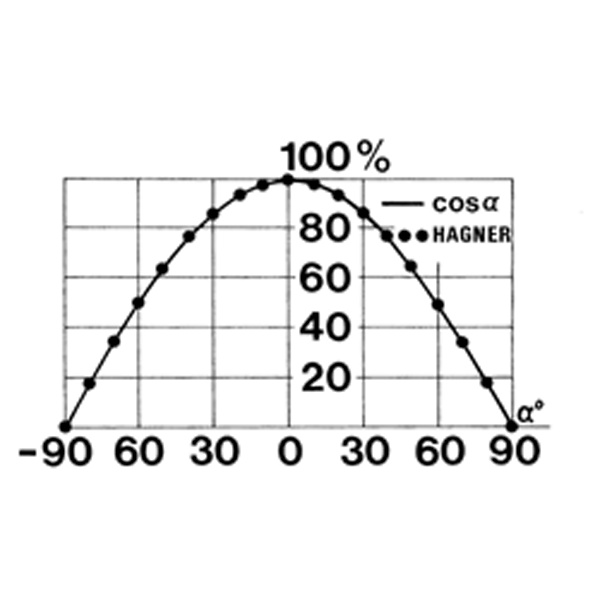

Detector : Silicon photodiode, Vλ-filtered and cosine corrected
Measuring Range : 0.1- 200,000 Ix and 0.01-20,000 fc
Accuracy : Better than ±3% (±1 in last digit)
Power Supply : 9 volt battery type PP3 alkaline (lifetime = 350 hrs)
Dimensions : 135 x 75 x 35 mm
Weight : 0.19 kg (TP200-X 0.48 kg with carrying case)
Part No
1) Hagner Digital Photometer Model TP200
2) Hagner Digital Photometer Model TP200-X
