Instantel Micromate Vibration and Overpressure Monitor

Choose the Micromate when you need monitoring power that can fit in the palm of your hand!
Rugged, reliable and easy to use, it stands up to the most challenging jobs. It may be small, but the
Micromate is packed full of features and now it is available in English, French, Spanish and Swedish.
Proven regulatory compliance designed to meet industry standards

Seamlessly record vibration and sound/noise or air overpressure with one monitoring unit. The
Micromate has four available channels: three for a triaxial geophone and one for an air over
pressure or sound level microphone. Designed to meet industry standards like the International
Society of Explosive Engineers (ISEE, 2011), DIN 45669-1, Swedish blasting (SS4604866) and Swedish
pile driving (SS025211), you can be sure to get accurate readings every time!

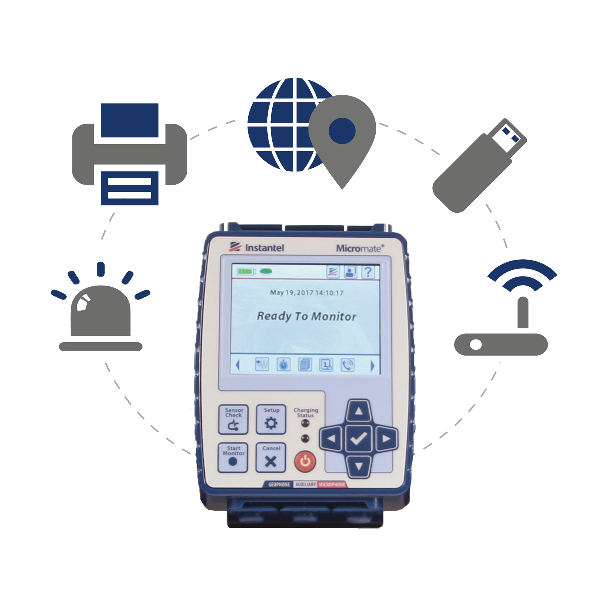

An optional auxiliary port and a built-in USB port expand your monitoring capabilities
Connect powered USB hubs, printers, memory sticks, modems or a GPS. The Micromate will
automatically detect connected devices in much the same manner that you are accustomed to with
your computer. Choose the optional auxiliary port and get additional support for remote alarms,
external wire triggers and more! With the Micromate, the possibilities are endless.

Built to last with a rugged design including a high-impact case, fully sealed top panel and non-
corrosive connectors.

The Micromate is built to last. The main unit comes with a fully sealed top panel. The non-corrosive
fully sealed industrial grade connectors are labeled and color coded for easy identification and
installation. Custom molded housings for the base unit are made of superior impact polycarbonate.
An optional protective “boot” provides the highest level of durability and ruggedness available in
Instantel’s product line. The operating temperature range is -40°C to 55°C (-40°F to 131°F). Reliability
is at the core of everything Instantel makes!

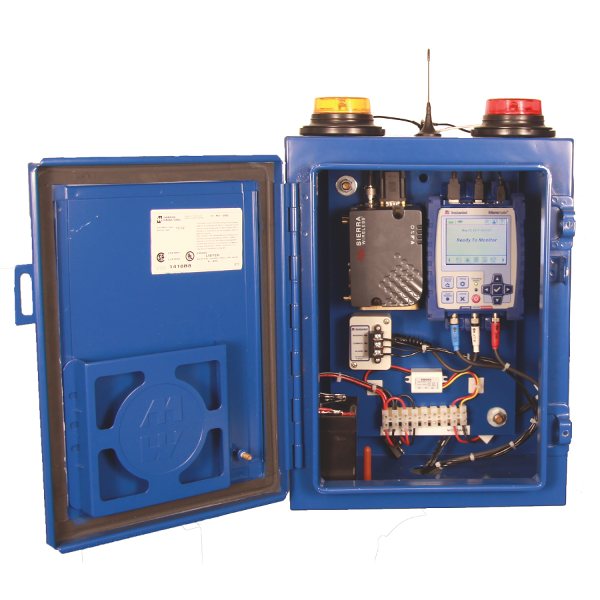

A complete remote monitoring solution with support for Instantel’s Auto Call Home™, THOR™ and
Vision™ programs.

Recorded events can be retrieved with a USB memory stick (no PC required) or using a modem and
Instantel’s proprietary Auto Call Home feature. With Auto Call Home you can automatically send an
event to your computer every time an event is received. Add in THOR, Instantel’s desktop software
solution, and automatically get notifications when you want them!

Part No
1) Instantel Model 721A2501 – Micromate ISEE Vibration and Overpressure Monitor
2) Instantel Model 721A2601 – Micromate DIN Vibration and Overpressure Monitor
3) Instantel Model 721A2901 – Micromate ISEE 2m (6.5ft) Triaxial Geophone
4) Instantel Model 721A3301 – Micromate DIN 2m (6.5ft) Triaxial Geophone

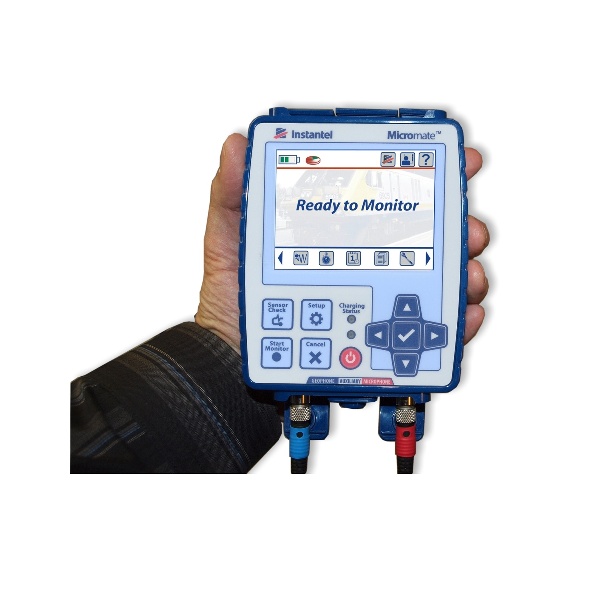

• Easy to use with touch screen, intuitive menu and a colour display. Small enough to fit in the palm of your hand, the Micromate features a touch screen display with large, high resolutions graphics, and a key pad. The full display touch screen QWERTY keyboard makes entry of data and notes convenient and easy.
• Built-in USB capability provides the flexibility you need. Standard on every Micromate unit is a USB port with operating speeds of up to 12 MBps. Connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need for a computer.
• A real-time operating system for uninterrupted monitoring. Feel confident knowing that you will never miss an event. If the event lasts longer than the preconfigured record time, the Micromate will continue to capture the event. Trigger once but capture each and every event while keeping your sample size small.
• Tough and reliable the Micromate is built to last. The Micromate was custom engineered with a rugged and reliable design to withstand harsh conditions, with a fully sealed top panel, non–corrosive connectors, and sealed electronics to enhance water resistance.
• Flexible power solutions, ideal for remote or permanent installations. The Micromate provides 10 to 15 days of uninterrupted monitoring with its internal battery. The battery life can easily be extended by connecting a solar panel or an external battery.
• Expansive memory for long term monitoring. The Micromate has an internal, non-volatile memory of 15 MB that can store up to 1000 events. An optional upgrade increases the memory to 60 MB for a storage capacity of over 4000 events.
