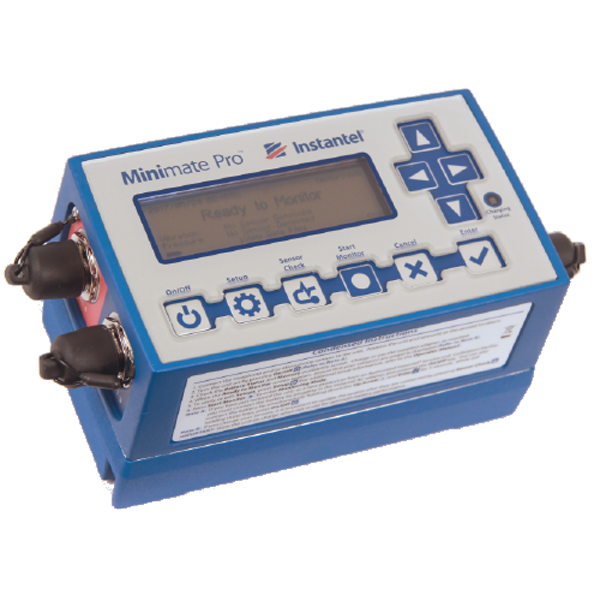

Instantel Minimate Pro 6™ Advanced Vibration, Overpressure and Sound Monitor
The Minimate Pro Series offers an unequalled set of features with advanced monitoring capabilities.
Choose between the Minimate Pro4 with four channels and the Minimate Pro6 which offers up to six
channels. Whether you are a novice or an experienced operator, the Minimate Pro Series is easy to
use while offering you advanced recording and reporting features.
Choose from 4 or 6 channels with unlimited monitoring potential
The Minimate Pro Series offers a solution designed to meet all of your monitoring needs. Monitor
vibration, noise and air overpressure to meet industry standards such as the International Society of
Explosive Engineers (ISEE) and DIN 45669-1. The Minimate Pro supports regulatory compliance
monitoring, as well as advance monitoring features. Whether you are a new user or the most
advanced, the Minimate Pro Series monitors can grow as your monitoring needs change.
Get advanced features that are intuitive and easy-to-use
The Minimate Pro has advanced monitoring capabilities with sample rates from 512 to 65,536
samples per second. With the Minimate Pro Series you can connect accelerometers, high frequency
geophones, hydrophones or high pressure microphones. Use an Instantel splitter box, and connect
up to six hydrophones on one Minimate Pro6 or four on a Minimate Pro4! Take advantage of the 65
kHz sample rate and get sound playback when you connect a Sound Level Microphone.

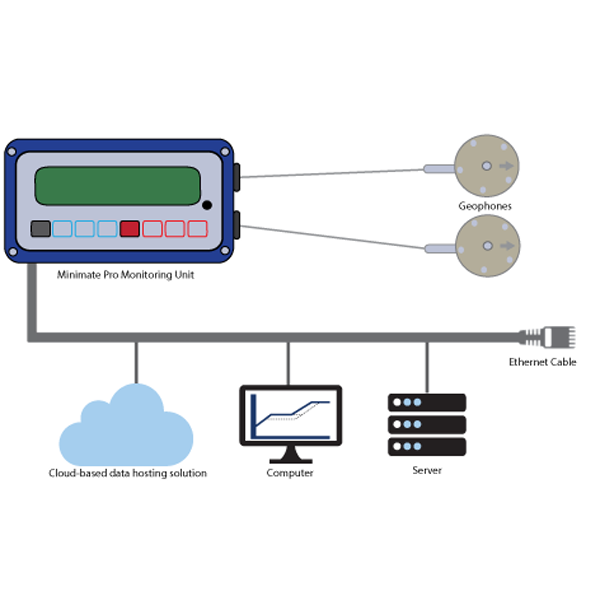

Support of Ethernet for improved communications and remote monitoring
Connect modems directly to a Minimate Pro unit using an Ethernet cable to transfer events using
Instantel’s proprietary Auto Call Home feature. The Minimate Pro’s Ethernet capability lets you
transfer events more quickly, especially when transferring larger event files. Transfer events to your
computer, a server or a cloud-based data hosting system, like Instantel’s Vision. Add in THOR,
Instantel’s desktop software solution, and automatically get notifications when you want them.
Part No
1) Instantel Model 720A2401 – Minimate Pro 6 Vibration and Overpressure Monitor

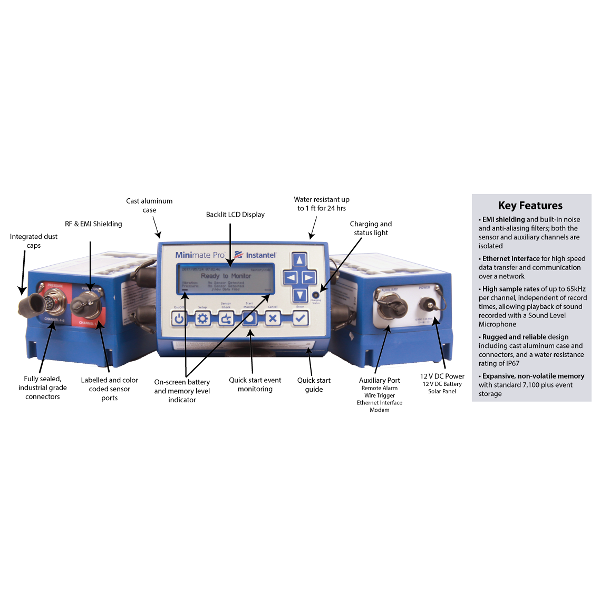

- Reduce noise and electrical interference
For those challenging applications, such as tunnelling, the Minimate Pro monitoring unitsinclude EMI shielding and built-in noise and anti-aliasing filters; both the sensor and auxiliary channels are isolated.
- Rugged and Reliable
With a cast aluminium case and a waterproof rating of IP67, the Minimate Pro is rugged and
reliable. Designed to handle the most extreme conditions, the Minimate Pro can handle anything you can throw at it.
- Flexible power solutions, ideal for remote or permanent installations
The Minimate Pro has a battery life of 10 days of interrupted monitoring with its internal
battery. The battery life can easily be extended by connecting a solar panel or external
battery.
- Feel confident knowing you’ll never miss an event
If the event lasts longer than the preconfigured record time, the Minimate Pro will continue
to capture the event. Trigger once but capture each and every event while keeping your
sample size small.
- Dedicated function keys and intuitive menu-driven operation enable quick and easy setup.
- Sample rates from 512 to 65,536 S/s per channel, independent of record times.
- Continuous monitoring means zero dead time between events, even while the unit is processing.
- Instantel Histogram Combo™ mode allows capturing thousands of full waveform records while simultaneously recording in histogram mode.
- The Auto Call Home feature automates remote monitoring applications.
- Non-volatile memory with standard 7,100-plus event storage capacity.
- Records full waveform events over two hours long.
- Match any channel with a variety of sensors; geophones, accelerometers, hydrophones and a dedicated microphone channel.
- Optional Sound Microphone available for sound monitoring. Combine an ISEE or DIN Triaxial
Geophone with the Sound Microphone to monitor two types of event data.
Specification

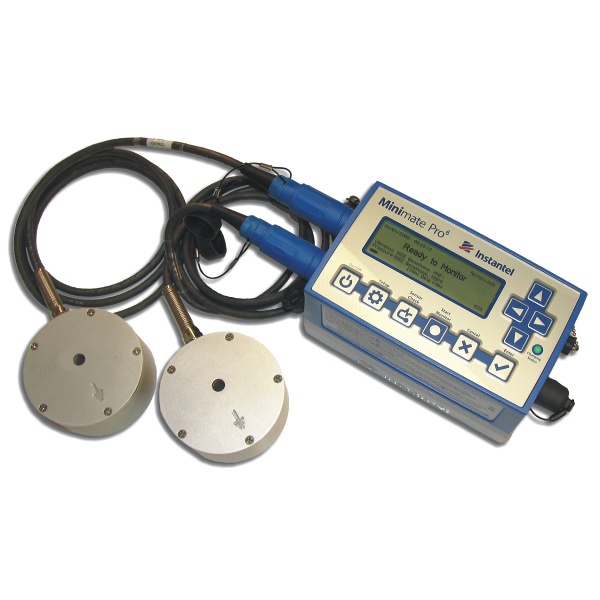

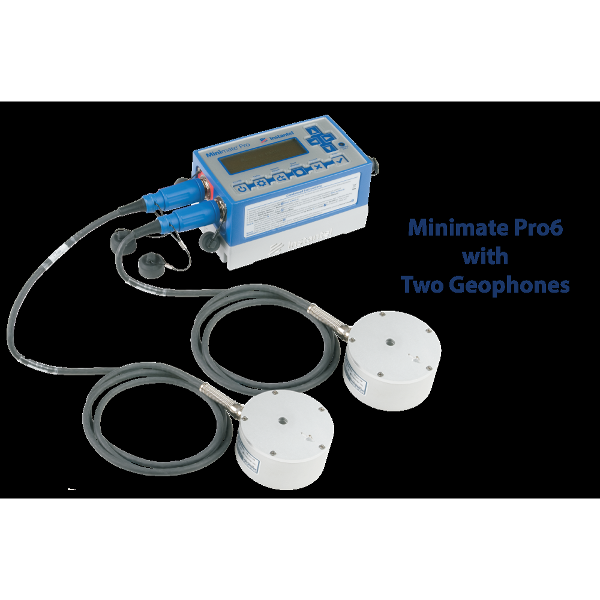

Minimate Pro 6 Channels : Channels 1-3, ISEE (or DIN) Triaxial Geophone, and Channels 4-6, a second
ISEE (or DIN) Triaxial Geophone, or an ISEE Linear Microphone
Geophone Range : Up to 254 mm/s (10 in/s)
Storage Capacity : 64 MBs. Optional 240 MBs
Full Waveform Events : 7,100-plus (1 second events at 1,024 S/s sample rate with two geophones)
Record Modes : Manual, Continuous, Histogram, Instantel Histogram Combo and VDV-Vibration
Dose Value (optional)
Dimensions : 254(l) x 117(w) x 108(h) mm (10.00 x 4.63 x 4.25 in)
Weight : 2.27 kg (5 lbs)
Battery : 10 days
User Interface : 10 domed tactile with separate keys for common functions
