Met One 804 4-Channel Handheld Particle Counter

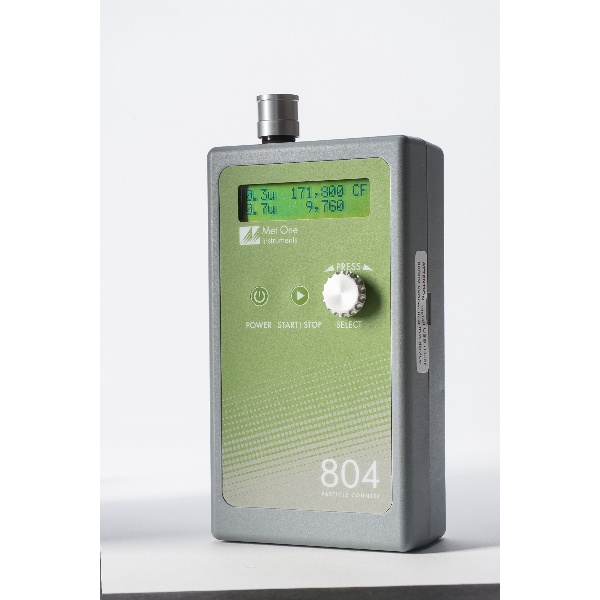

Met One Instruments’ 804 handheld particle counter is a 4-channel portable particle counter that
counts particles 0.3 microns to 10.0 microns – giving you portability and reliability at very
competitive pricing. Though compact, this unit is completely self-contained with its own internal
battery and sample pump. The unit is configurable, allowing you to choose your particle sizes of
interest from seven sizes: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0 or 10.0 microns.
The 804 is simple to operate, using only two front-panel buttons and scroll wheel to control a user
friendly, menu driven platform for easy configuration. Unlike other counters that can take up to a
minute to deliver results, the 804 incorporates user selectable sampling times up to 1 minute and
displays counts in as little as 3 seconds. The unit will take single or continuous samples. A self-
contained battery pack powers the unit for 30 hours of typical intermittent operation, and up to 8
hours of continuous use. The included AC charger / adapter operates the counter, even when the
battery pack is discharged, and recharges the depleted battery in 2.5 hours. The 804 can also store
up to 2500 records for output as Excel formatted output via included COMET software. A USB
interface provides quick data download and firmware upgrades.
Applications:
- Controlled Environments
- Cleanroom Monitoring
- Indoor Air Quality
- Process Control
- HVAC Applications
- Filter Testing
- Laboratory Environments
- Trace Contamination Source
- QA Programs
- Fast Sampling
- Simple Operation
- Selectable sizes with available favourites and (2) sizes displayed.
- Low cost w/ data logging
- Self-Contained
- 1-Year Warranty
Specifications
OPERATING PRINCIPLE : Counts individual particles using scattered laser light
PERFORMANCE
Particle Size Range : Four Channels : >0.3, >0.5, >0.7, >1.0, >2.5, >5.0, and >10.0 μm (selectable)
Concentration Range : 0 – 3,000,000 particles per cubic foot (105,900 particles/L)
Accuracy : ± 10%, to calibration aerosol
Sensitivity : 0.3 μm
Flow Rate : 0.1 cfm (2.83 lpm)
Sample Time : Adjustable (3-60 seconds)
Status Indicators : Low Battery, Service
ELECTRICAL
Light Source : Laser diode, 30 mW, 780 nm
Power : 7.2V Lithium Ion self-contained battery pack—provides 30
hours of typical intermittent operation, up to 8 hours
continuous use
AC Adapter/Charger : AC to DC module intelligent Lithium Ion charger, 100-240VAC to 8.4 VDC @ 1500 mA typical. Charge time 2.5 hours typical
Communications : USB
Certifications : Meets or exceeds CE, ISO, ASTM, and JIS international certification
INTERFACE
Display : 2 line by 16-character LCD
Keyboard : 2-button membrane
PHYSICAL
Dimension : H 6.75" (17.2 cm) W 3.75" (9.5 cm) T 2.0" (5.1 cm)
Weight : 1.31 lb (21 oz) (0.60 kg)
ENVIRONMENTAL
Operating Temperature : 0˚ to +50˚C
Storage Temperature : -20˚ to +60˚C
ACCESSORIES
Supplied : Operation Manual
AC to DC Converter Module with IEC AC Power Cord
NIST Traceable Calibration Certificate
USB Cable
Software
Optional : Carrying Case (P/N 8517)
Protective Boot (P/N 80450)
Zero Filter Kit (P/N 80846)
Flow Meter Kit (P/N 80530)
Met One 804 Four Channel Handheld Particle Counter datasheet
