Ntek AMG mini Ion+

Ntek AMG mini Ion+

Pink and white noise generator and amplifier

AMG mini Ion+ is designed to operate at maximum power with Ntek OMNI series sound sources and the DIR slim directional loudspeaker. Two high-quality power modules amplify and balance the sound energy toward the connected source.

The integrated rechargeable lithium battery allows the amplifier to be positioned at the measurement site without continuous mains power. It provides about 60 minutes of operation at full signal-emission power. A unified signal for OMNI series sources and DIR slim simplifies source/output matching, and the wireless system allows remote on/off control.

The standard high-performance remote control operates at 868 MHz and is intended for technicians working across non-adjacent environments or thick partitions.

Manufacturer code: 10500

Technical features

  • Dimensions: 140 × 200 × 330 mm
  • Weight: 5 kg
  • Frequency response: 40 Hz–10 kHz
  • Battery capacity: 1 hour continuously at full power
  • Noise generator: white/pink noise, or external source through BNC/RCA
  • Channels: 2 outputs
  • Maximum power per channel at 4 Ω: 350 W
  • Signal-to-noise ratio: >113 dBA
  • THD + N: <0.05% from 0.1 W to full power
  • Operating range: 0–40 °C
  • Conformity: UNI EN ISO 3382, 354, 140 and 16283; CE directives

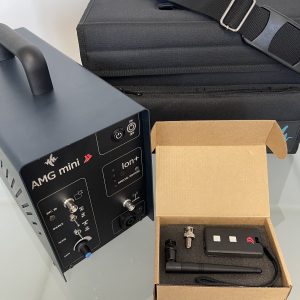

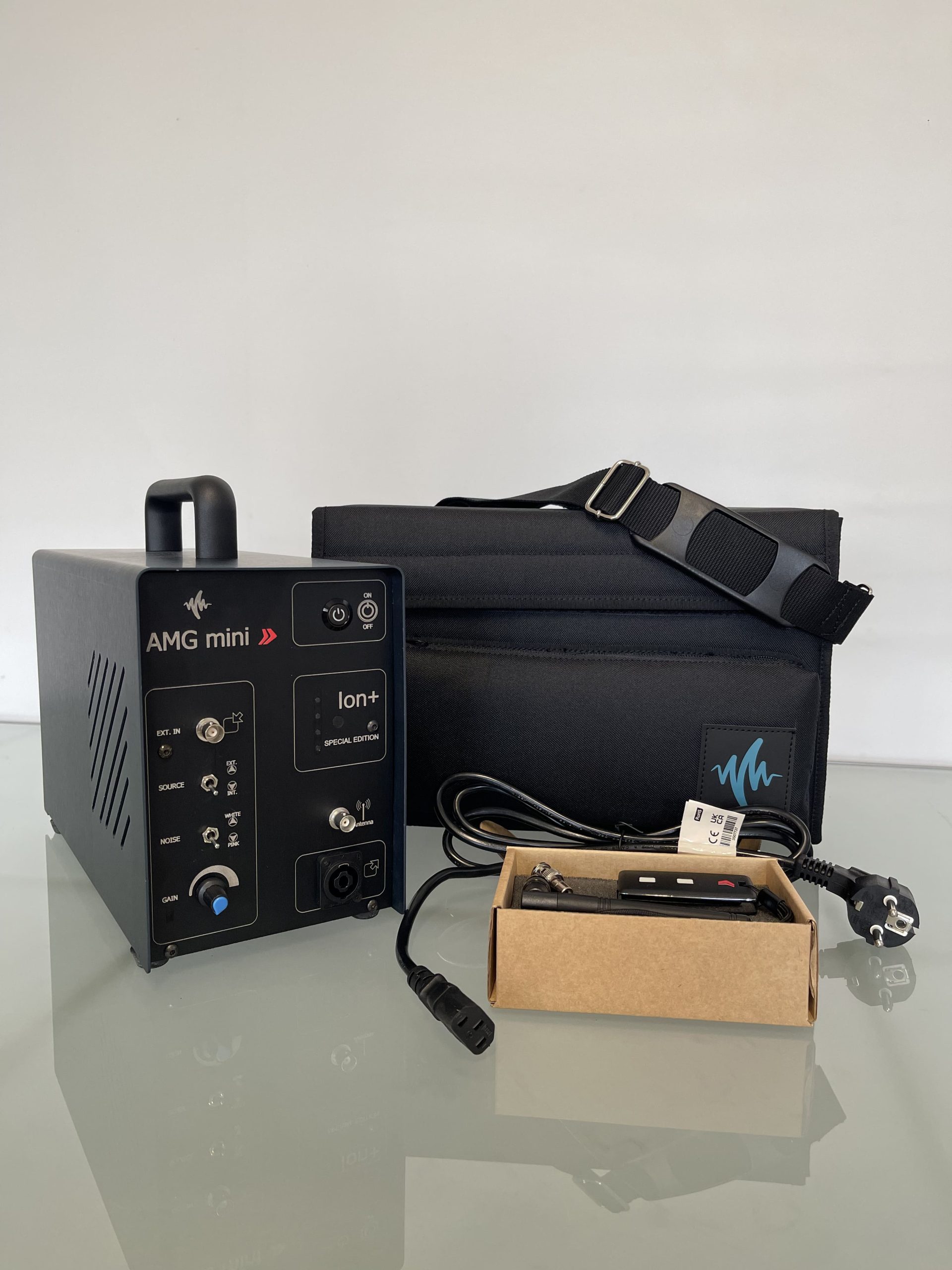

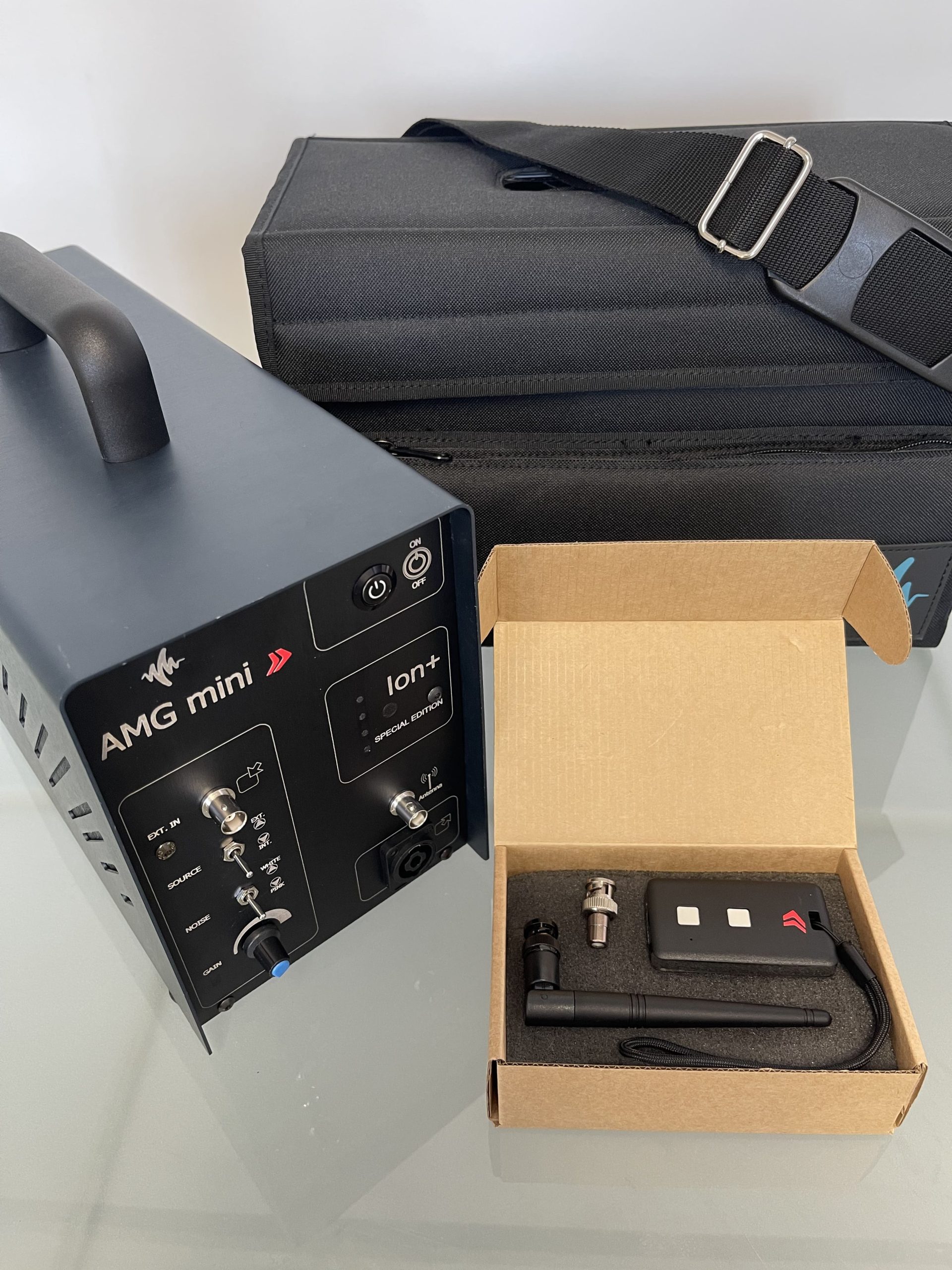

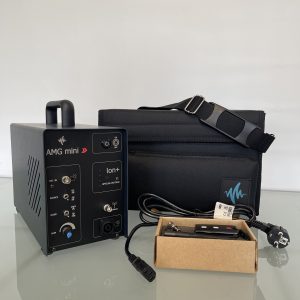

Standard equipment

  • 868 MHz wireless high-performance remote control
  • Antenna
  • BNC/RCA connector
  • 220 V AC recharge cable

Optional: Protective backpack for AMG mini; resin trolley for OMNI series and AMG mini.

Download Datasheet
