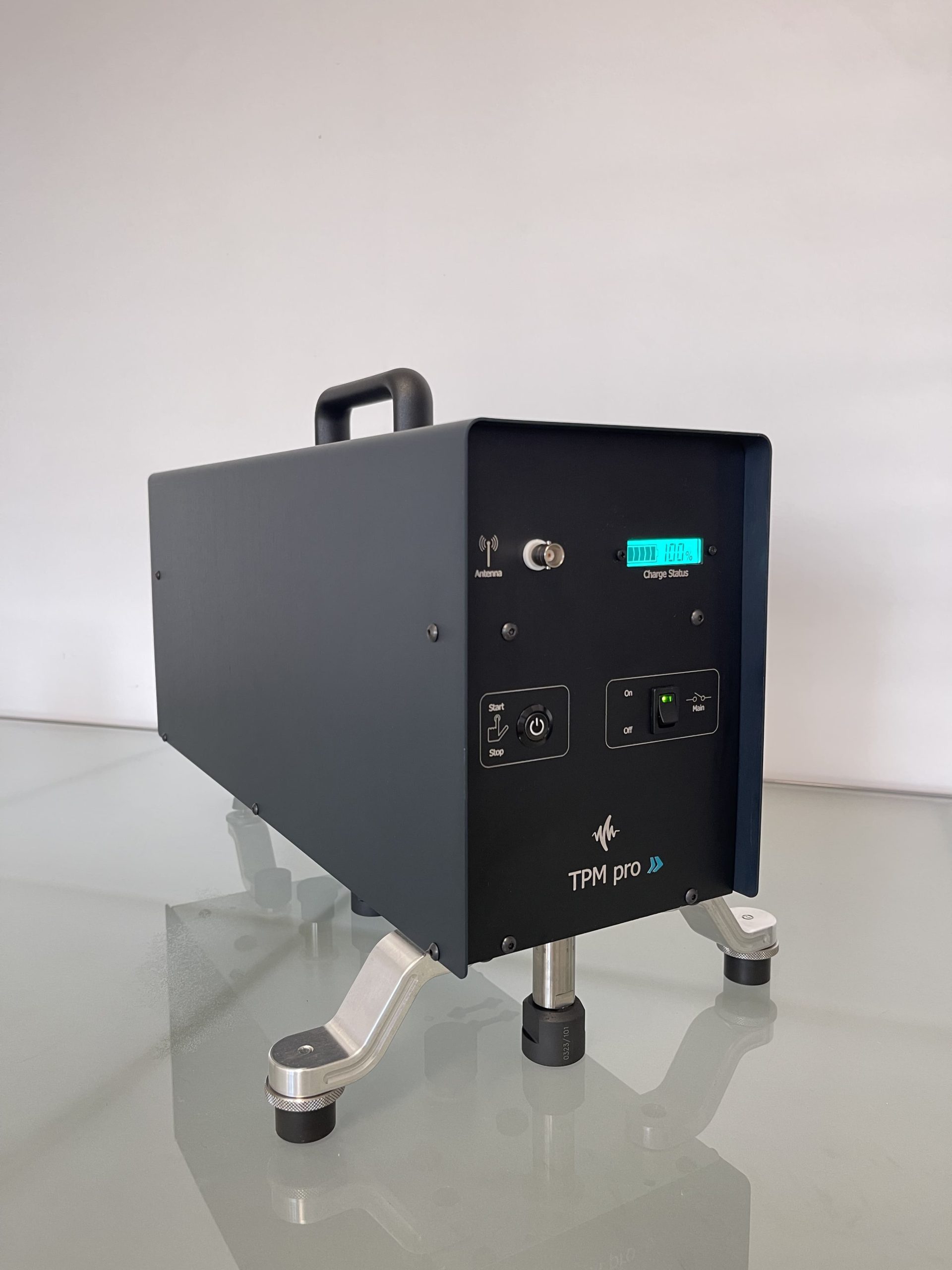

Ntek TPM pro Tapping Machine
Tapping machine

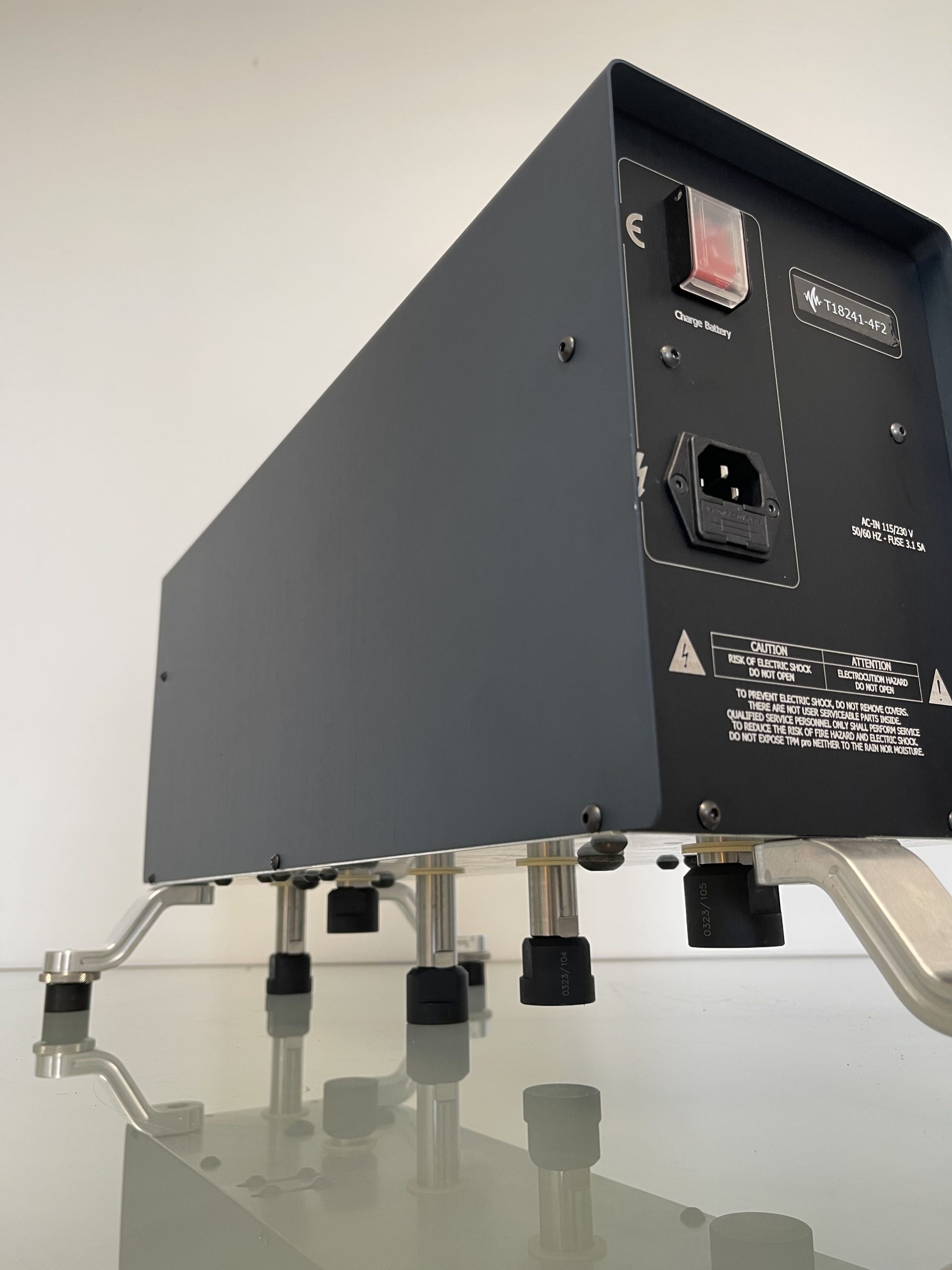

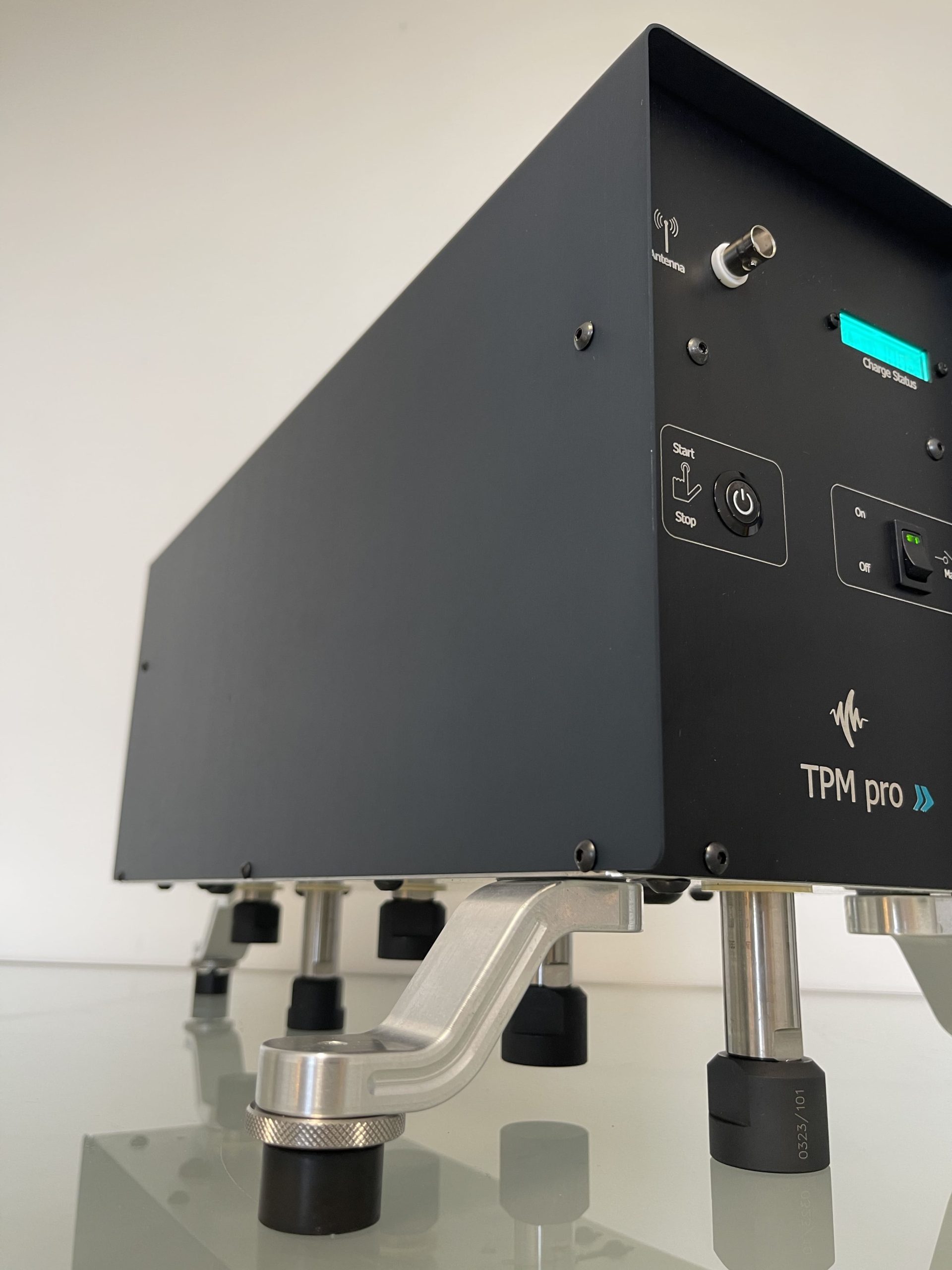

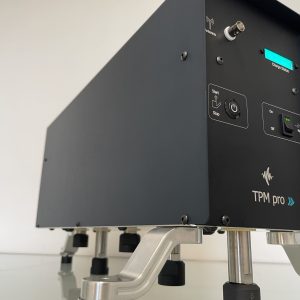

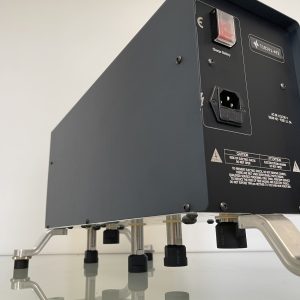

TPM pro is Ntek’s tapping machine for impact-sound measurements. The wireless remote control allows the user to turn the machine on and off remotely.
Ntek TPM pro Tapping Machine
Manufacturer code: 50300
Technical features
- Dimensions: 160 × 290 × 520 mm
- Weight: 11 kg with batteries, antenna and remote control
- Three retractable supports adjustable in height
- Power: 100–240 VAC, 50/60 Hz
- Consumption: 220 VA
- Rechargeable lithium batteries; duration 3 hours; charging time 2 hours
- Five in-line hammers
- Hammer interaxial spacing: 100 ± 3 mm
- Hammer weight: 500 ± 6 g; diameter: 30 ± 0.2 mm
- Tapping rate: 10 impacts per second, controlled by encoder feedback loop
- Sequence: 1, 3, 5, 2, 4
- Effective fall height: 40 mm, adjustable ±5 mm
- Wireless remote control: 433 MHz
- Conformity: UNI EN ISO 10140-3, ISO 140-7, ISO 16283-2, ASTM E492 and ASTM E1007; CE directives

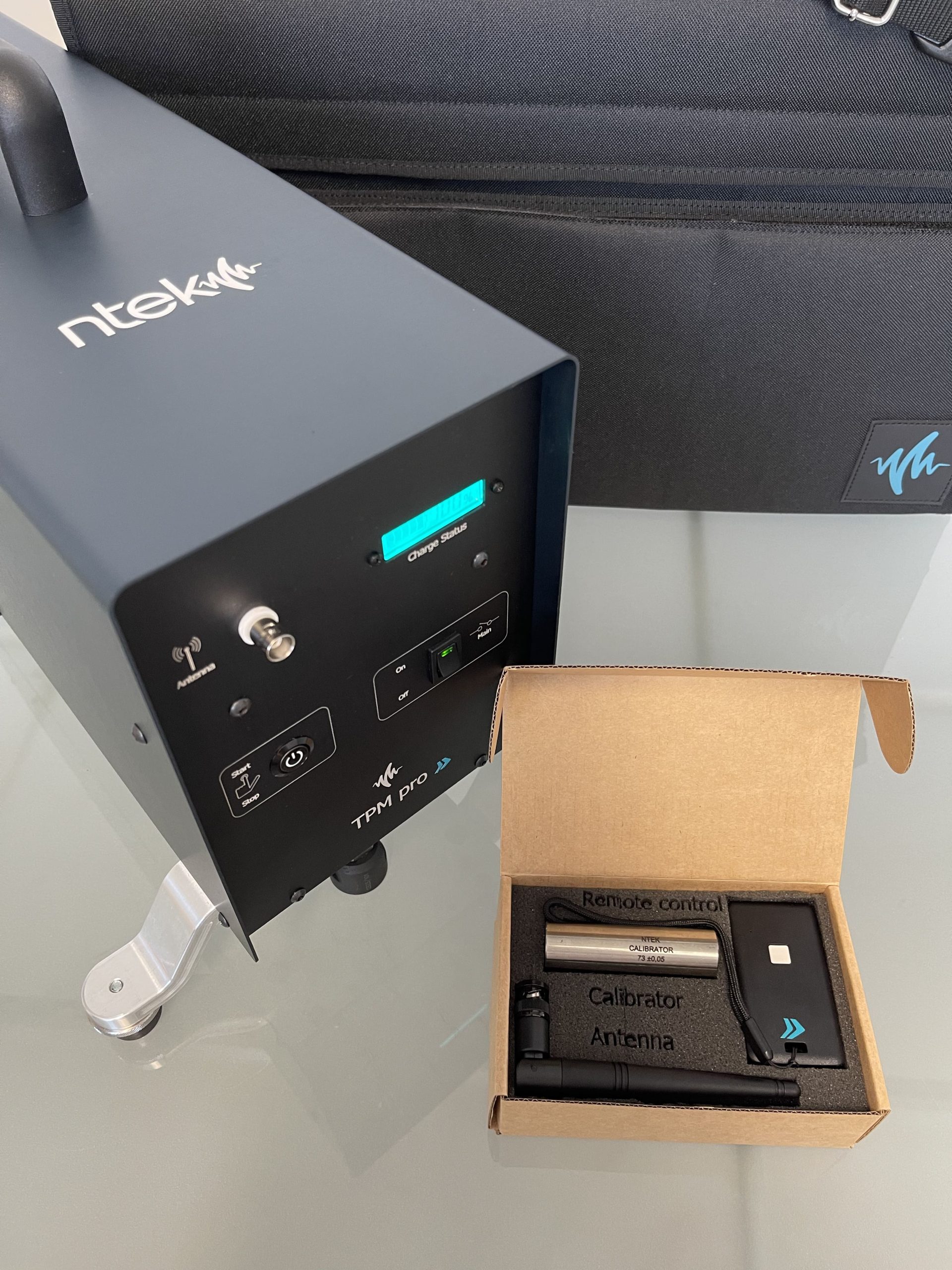

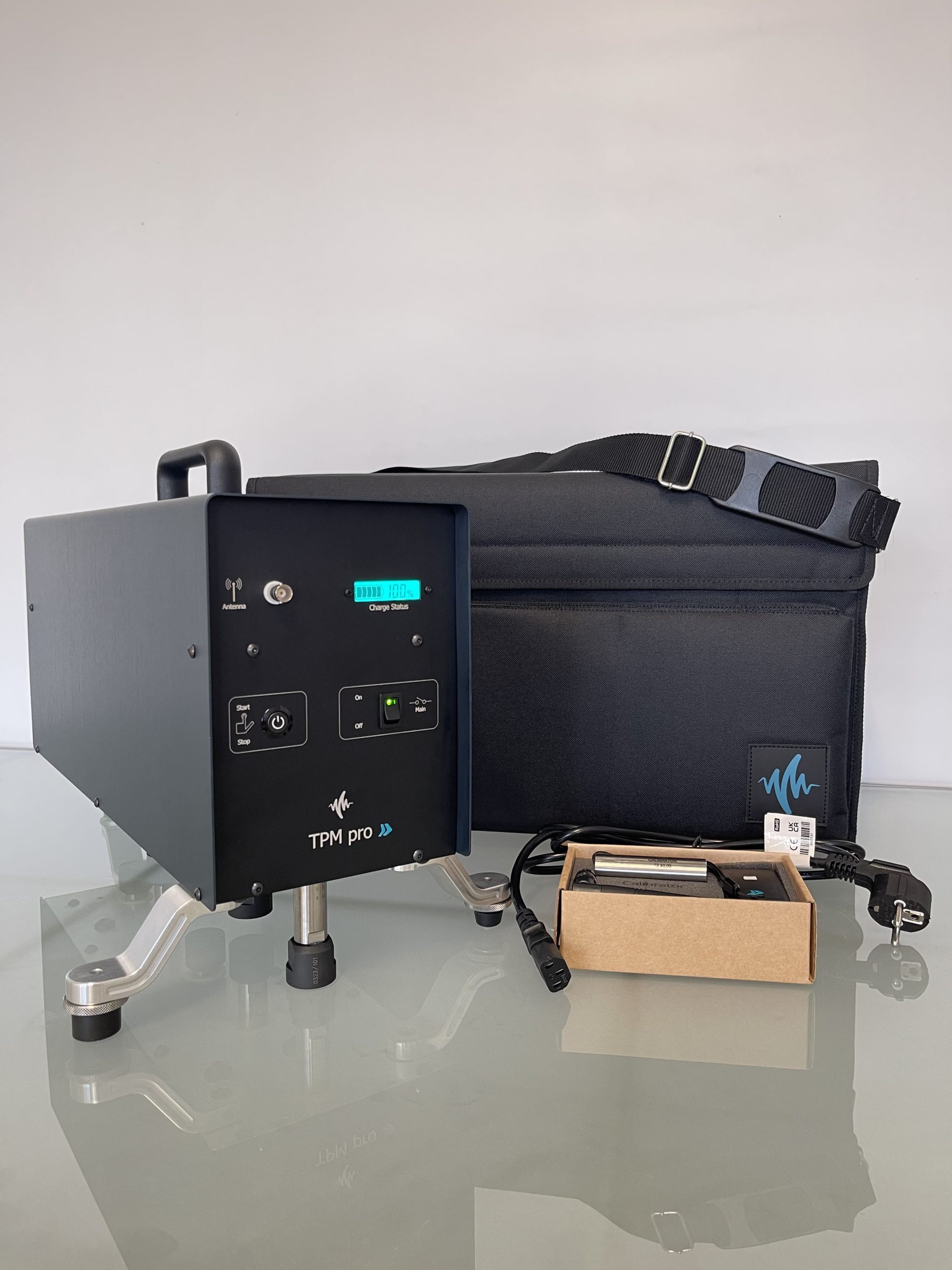

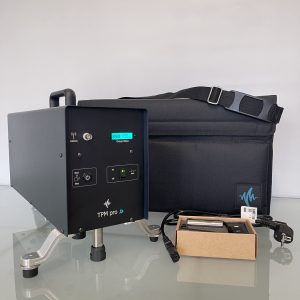

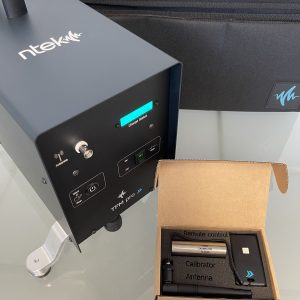

Standard and optional equipment
- Standard 433 MHz wireless remote control
- Antenna
- Lithium batteries
- 220 V electricity supply cable
- 73 mm calibrator
Optional: Resin trolley for TPM pro; HP 868 MHz remote control.
