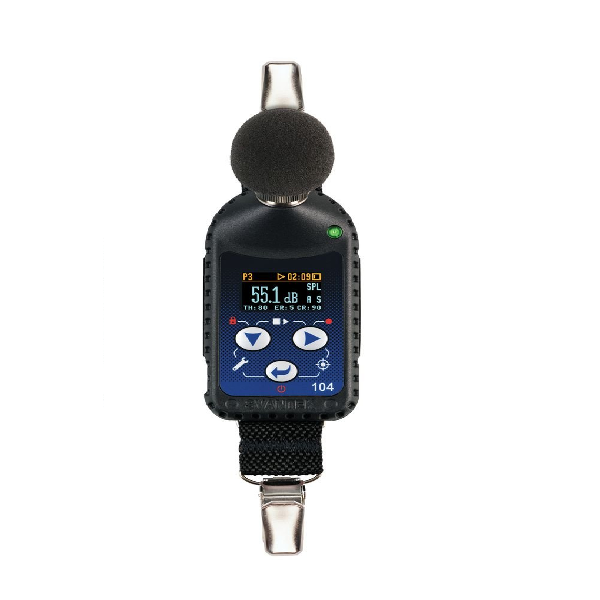

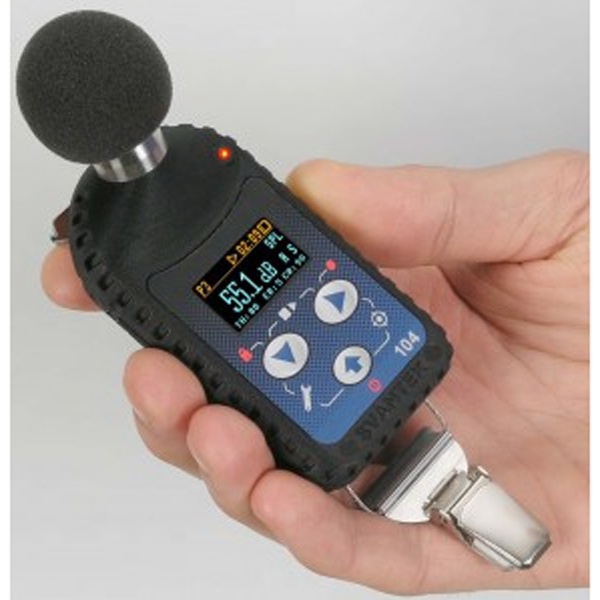

Svantek 104 Single Channel Personal Noise Dosimeter
SV 104 Noise Dosimeter brings incredible functionality into a compact style instrument. The SV 104
instrument is a revolutionary new approach to occupational health and safety noise monitoring
offering voice comments and audio events recording functions which are a new concept in an
instrument of this size. The measurement data is safely stored in the large 8 GB memory and the

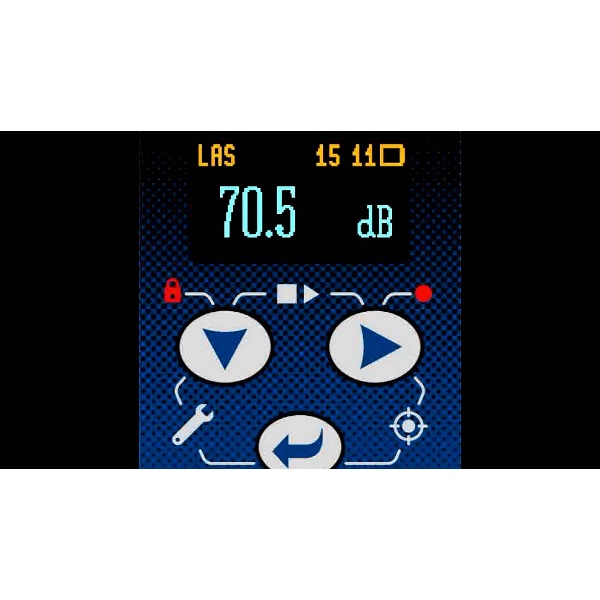

amazing OLED screen displays information in both text and graphical form and offers excellent
visibility even in full daylight.
This personal dosimeter has a robust 1/2 MEMS microphone enabling easy calibration using most
commonly available acoustic calibrators. The SV 104 is a cable-free dosimeter and is typically

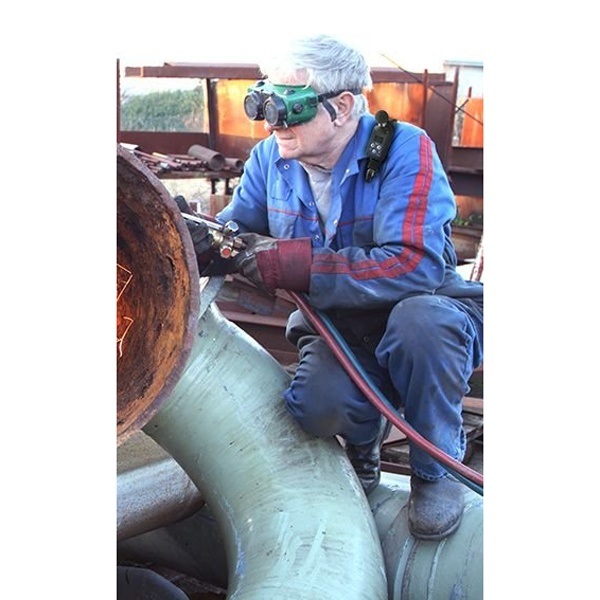

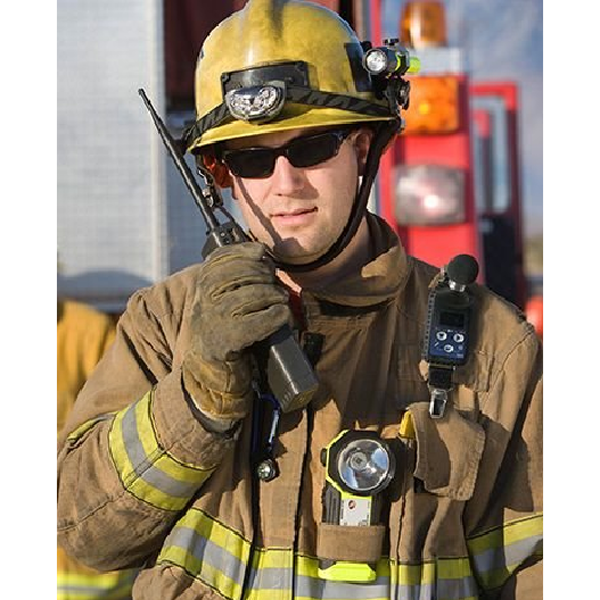

attached to the user’s shoulder, close to the ear using the mounting clips supplied. The instrument
works with Svantek’s specialist health and safety software package, “Supervisor” and is powered
using built-in rechargeable batteries or through the USB interface which also enables easy
connection between the SV 104 and a PC.
Never before has a noise dosimeter been so accomplished yet affordable, making your
measurements more accurate and reliable than ever before.
Part No
1) Svantek Model SV 104 – Personal noise dosimeter (Single Kit)
2) Svantek Model SV 104 K5 – 5 units x SV 104 personal noise dosimeters
3) Svantek Model SF 104 OCT – 1/1 octave analysis option
4) Svantek Model SF 104 WAV – Audio events recording option
Features
- Small, compact style dosimeter
- Easy and friendly user interface
- Shock resistant MEMS microphone
- Built-in tri-axial accelerometer for vibration shock (knocking) detection
- High contrast colour OLED display
- Single measurement range
- Option for octave real-time analysis
- Option for audio events recording
- Voice tagging
- Automatic calibration start
- Three virtual measurement profiles
- Operational time > 40 hours
- USB 2.0 interface
- Rechargeable battery
Specification
Standards : IEC 61252; ANSI S1.25-1991; Class 2: IEC 61672:2002
Weighting filters : A, C and Z
Time constants : Slow, Fast, Impulse
Exchange rates : 2, 3, 4, 5, 6
Measurement results Lavg/Leq, SPL, Max, Min, SEL, SEL8, PSEL, LEPd, Dose (%),
TWA, E, E_8h, Peak, Run Time, Upper Limit, Time (ULT), L(C-
A), Projected Dose (D_8h)
Measurement profiles : 3
Microphone : Class 2 microphone, 1/2" housing with built-in TEDS
functionality for the automatic calibration
Measurement range : 55 dBA RMS ÷ 140.1 dBA Peak
Frequency range : 30 Hz ÷ 8 kHz
Dynamic range : 95 dB
Data logging : Summary results for the measurement time
Time-history logging of Leq/Max/Min/Peak with 1s logger
step
Voice comments : Audio records on demand, created before or after
measurement, added to measurement file
Audio recording : Audio events recording, trigger and continuous mode, 12 or
24 kHz sampling rate, wav format (option)
1/1 octave Real-time analysis in octave band filters, Class 1,
IEC 61260
9 filters with centre frequencies from 31.5 Hz to 8 kHz
(option)
Basic data
Display : 128 x 64 pixels OLED
Memory : 8 GB
Interfaces : USB 2.0 client
Keyboard : 3 push buttons
Power supply : Ni-MH rechargeable cells: operation time > 40 hours 1
USB interface 500 mA HUB
Environmental conditions : Temperature from -10 o C to 50 o C
Humidity : up to 95 % RH, non-condensed
Dimensions : 88 x 49.5 x 19.2 mm
Weight : 100 grams with batteries
