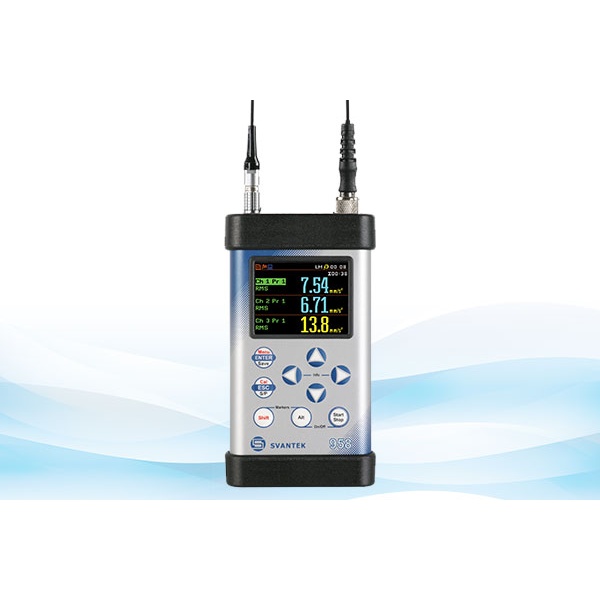

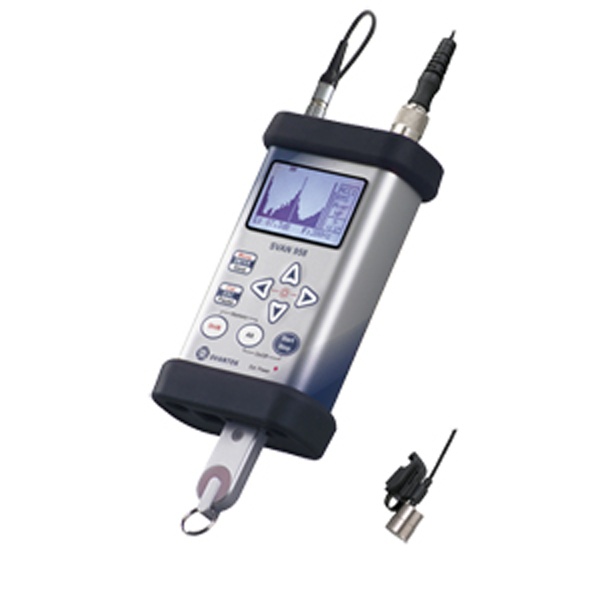

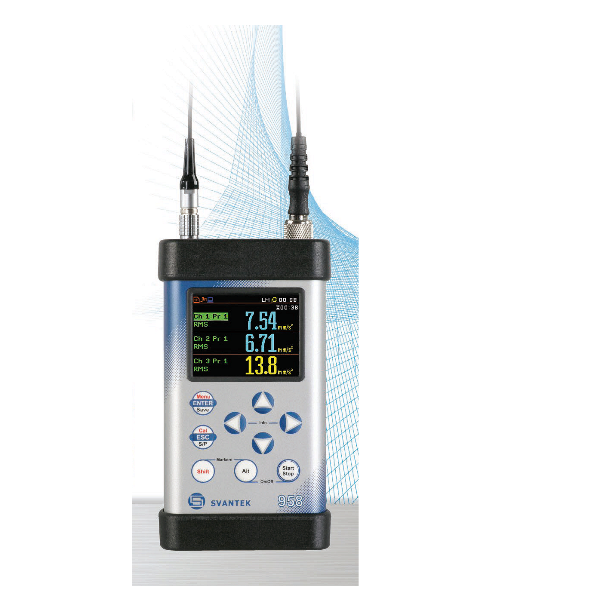

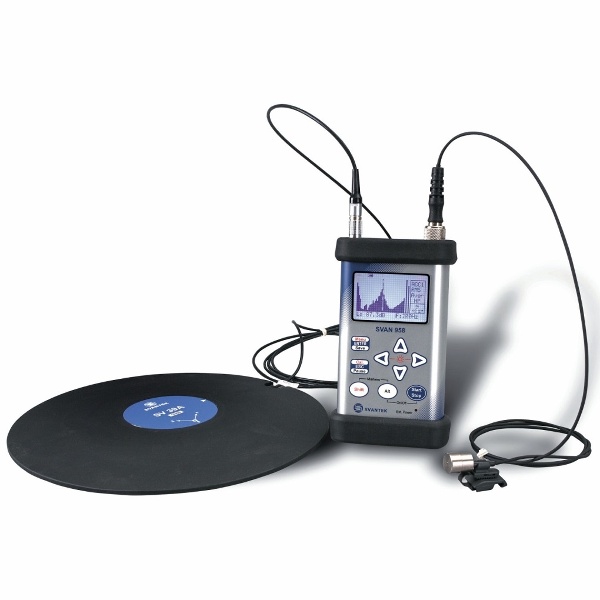

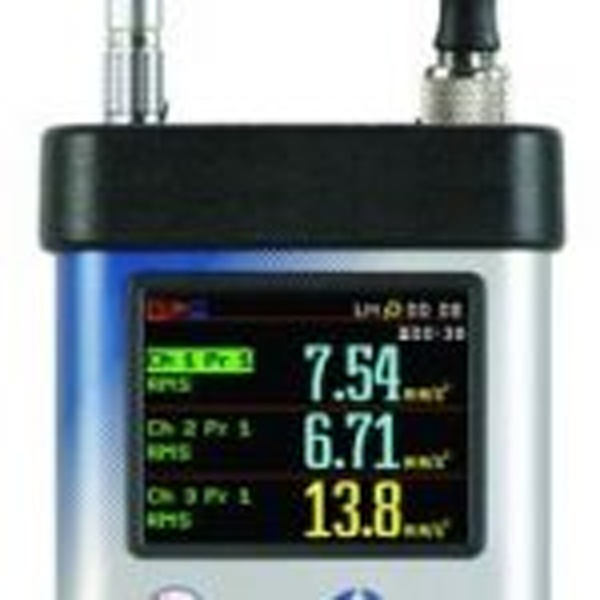

Svantek SVAN 958A Class 1 Four-Channel Sound & Vibration Analyser
At a glance
Four-channel Class 1 sound and vibration analyser for simultaneous acoustic, building acoustic, structural, and industrial measurements.
Typical applications
Building acoustic and sound-insulation investigations. Environmental sound and construction noise studies. Structural and ground vibration investigations. Industrial acoustic and vibration diagnostics. Multi-point engineering measurements where separate instruments would add complexity
Configuration and quotation notes
Confirm model, options, accessories, calibration, delivery and service requirements before quotation.
Key features
Four independent input channels configurable for sound or vibration. Simultaneous real-time FFT, octave-band, cross-spectral, and broadband analysis. Class 1 sound measurement performance aligned with IEC 61672-1 where applicable. Vibration measurements including velocity, acceleration, and dominant frequency. Building acoustic functions including RT60 and sound-source integration, subject to configuration. Supports microphones and mono- or triaxial IEPE accelerometers. Time-history data logging with PC software and remote-workflow options
Key specifications
Channels Four independent channels Channel modes Sound or vibration per channel Analysis Broadband, FFT, octave bands, cross spectra, and RT60, subject to configuration Vibration parameters Velocity, acceleration, and dominant frequency Sensors Microphones and mono-/triaxial IEPE accelerometers Software SvanPC++ and SvanNET-compatible workflows, subject to configuration
