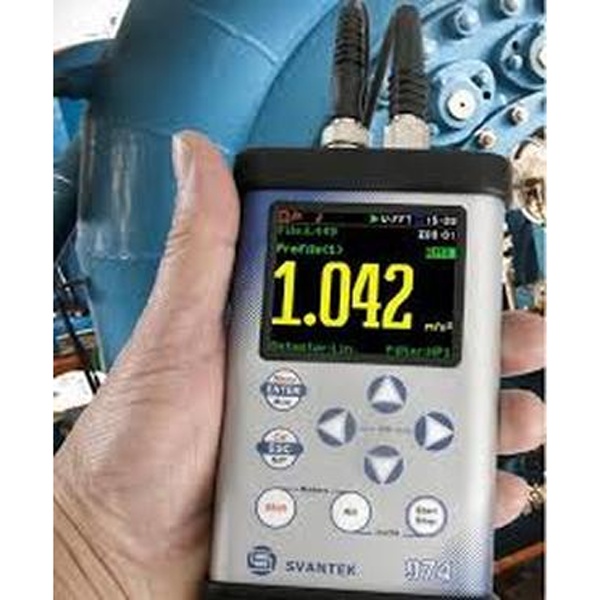

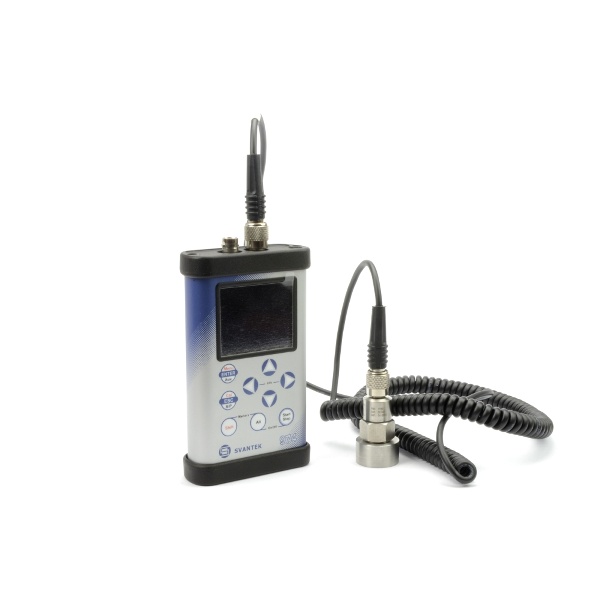

Svantek SVAN 974 Vibration Level Meter & Analyser
SVAN 974 Vibration Level Meter and Analyser is intended for general vibration measurements
and machinery condition monitoring. It can be used by consultants, maintenance services,
industry R&D departments etc.
Instrument allows parallel acceleration, velocity and displacement measurements. Three
vibration profiles allow parallel measurements with independently defined filters and RMS
detector time constants. Each profile provides a significant number of results (like RMS, Peak or
Max).
The advanced time-history logging for each profile provides the complete information about the
measured signal. Measurements data stored to microSD card can be easily downloaded to any
PC using the USB interface and SvanPC++ software.
Most of required weighting filters, like VelMF, meeting ISO 10816 standard requirements, are
available with this instrument. Using the computational power of its digital signal processor, the

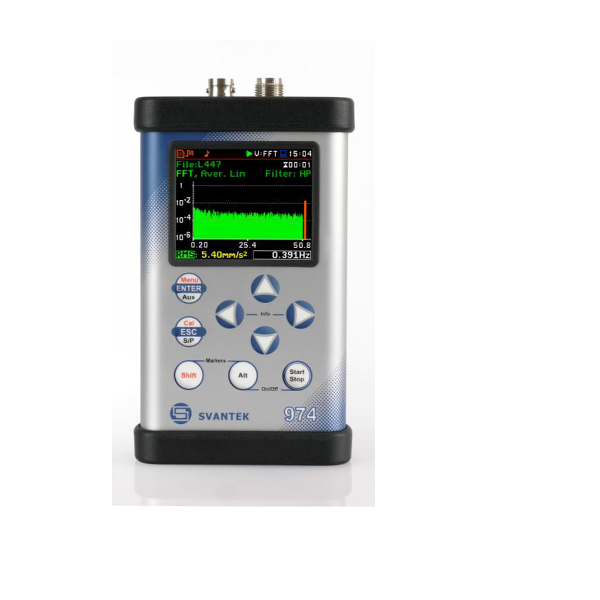

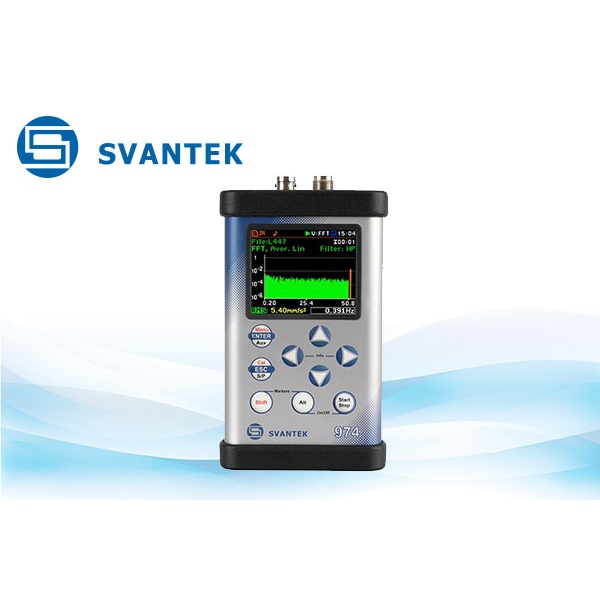

SVAN 974 instrument can perform additionally the real-time 1/1 or 1/3 octave or FFT analysis.
The SVAN 974 offers also, parallel to the vibration measurement, the RPM measurement with
Monarch laser tachometer.
Instrument is powered from four AA standard or rechargeable batteries. The powering of the
instrument from the USB interface is also provided. The robust and very compact case together
with a light-weight design complete the exceptional features of this modern instrument.
Part No
1) Svantek SVAN 974 – Vibration Meter and FFT analyser
2) Svantek SVAN 974_WA – Vibration Meter and FFT analyser only
3) Svantek SVAN 974_1 – Option 1/1 & 1/3 Octave analysis
4) Svantek SVAN 974_8 – Rotation measurement option without Laser Tachometer
5) Svantek SVAN 974_15 – Time Domain Signal Recording
Features
- Low-cost vibration analyser
- IEPE and charge type accelerometers supported
- Three parallel independent profiles – parallel acceleration, velocity and displacement
measurements
- Built-in machine filter (10 Hz ÷ 1 kHz) meeting ISO 10816 requirements
- FFT real time analysis – up to 1600 lines (included)
- 1/1 octave or 1/3 octave real time analysis (option)
- RPM measurements (option)
- Time domain signal recording to WAV format (option)
- Advanced Data Logger of RMS / Max / Peak results including spectral analysis
- OLED colour display
- MicroSD card
- Advanced trigger function
- Power supply by four AA rechargeable or standard batteries
- Battery operational time up to 16 h (in the meter mode)
- Compact, light weight and robust case (only ca 390 grams including batteries)
- USB 1.1 Client & Easy in use
SVAN 974 Vibration Level Meter Specification
Standards : ISO 10816-1
Number of Profiles : 3
Time Constants : from 100 ms to 10 s
RMS Detector : Digital True RMS detector with Peak detection, resolution 0.1 dB
Accelerometer : SV 80 IEPE, single axis, sensitivity 10 mV/(ms-2) ~ 100 mV/g
Measurement Range : 0.01 ms-2 RMS ÷ 438 ms-2 Peak (with SV 80)
Frequency Range : 1 Hz ÷ 5 kHz (with SV 80 and HP or HP1 filter)
Internal Noise Level : Less than 10 μV RMS (IEPE input & HP1 filter)
Dynamic Range : > 100 dB
Memory : MicroSD card 8 GB (removable & upgradeable)
Display : Colour 320 x 240 pixels, OLED type
Keyboard : 9 push buttons
Power supply : 4 x AA alkaline or rechargeable NiMH batteries(Excluded) USB interface 500 mA HUB
Temperature Conditions : Temperature from -10 o C to 50 o C
Humidity : Up to 90% RH, non-condensed
Dimensions : 140 mm x 83 mm x 33 mm (including microphone and preamplifier)
Weight : Approx. 0.4 kg with batteries (without accelerometer)
