Svantek SVAN 979 Class 1 Sound & Vibration Analyzer

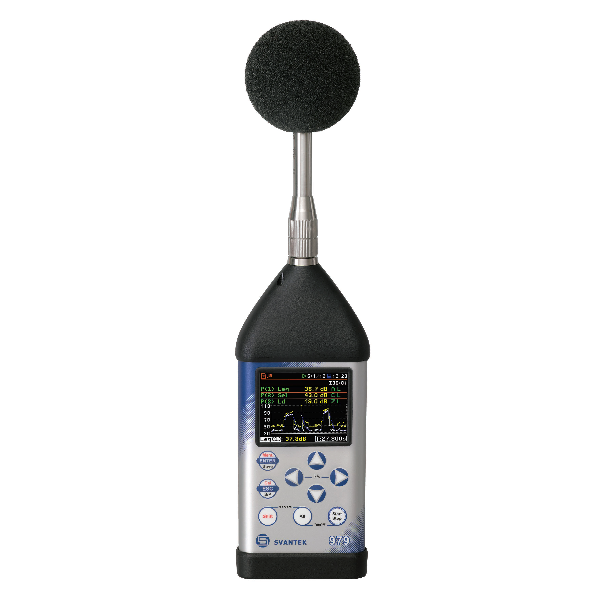

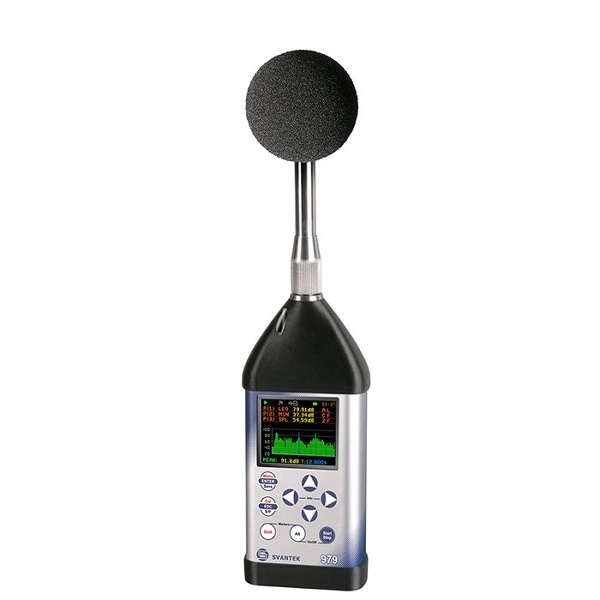

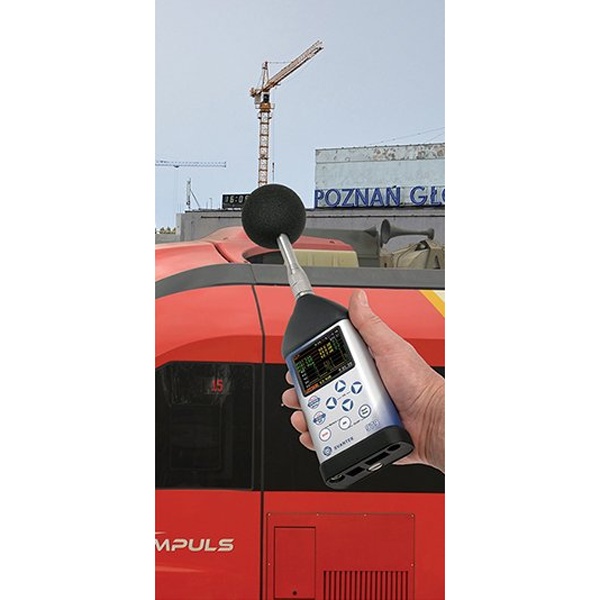

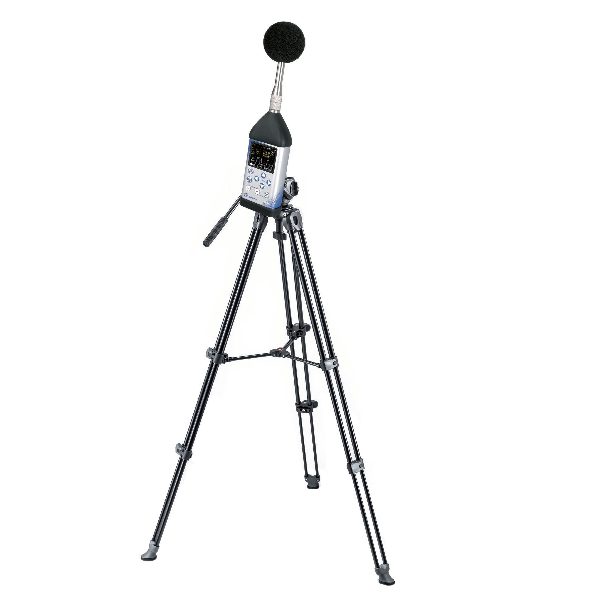

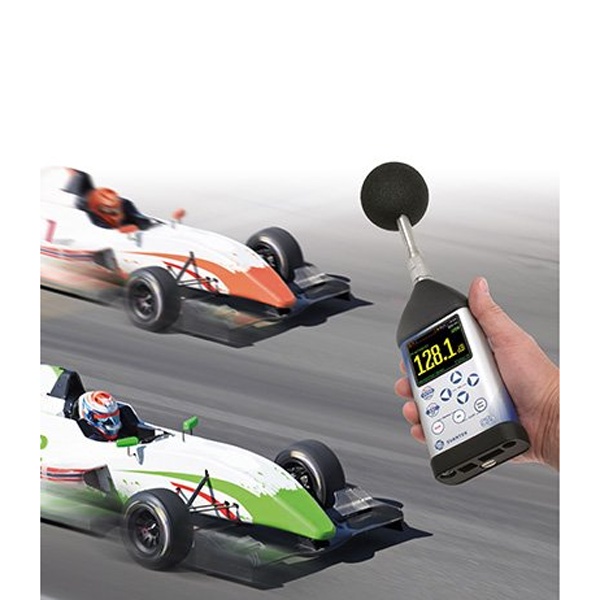

The SVAN 979 Class 1 Sound & Vibration Analyzer is our flagship device. Your first impression
will be the amazing OLED display which features excellent visibility in all light conditions. The
instrument’s lightweight and durable aluminium housing not only gives a sense of a firm grip but
also protects the valuable electronic device from damage and any influence from electromagnetic
interference.
The SVAN 979 has a very large dynamic range of measurement – over 110dB. It’s high-quality
GRAS 40AE microphone allows measurement in the frequency range starting as low as 3 Hz.
The measurement path has been designed to allow the use of other microphones should you
want to measure very low frequencies or very high levels of noise. The microphone preamplifier
has also been reinforced with a collar to protect against mechanical damage. One amazing
feature of the SVAN 979 is that if you disconnect the microphone preamplifier then you can use

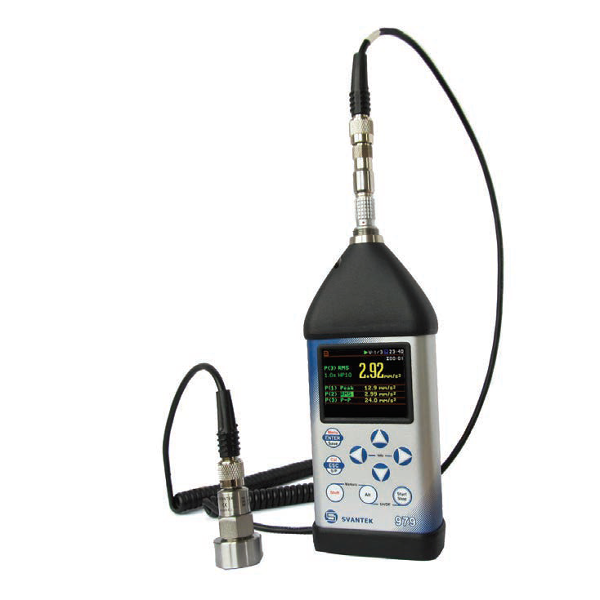

the instrument for vibration measurements – simply connect up a cable and a vibration sensor .
The SVAN 979 has an extensive range of hardware and firmware add-ons that includes built-in
Bluetooth ® , windscreen infrared detector, direct connections to GPS module, GPRS or Wireless
LAN modem or the totally unique built-in vibration shock sensor that warns the user whenever
the instrument itself is exposed to vibrations that may influence the noise measurements.
Two USB connectors allow for the simultaneous operation of USB pen-drives and
communication with the computer.
Usage of this number of advanced features at the same time is possible as the instrument has
two high-speed digital signal processors. For example, the SVAN 979 is capable of measuring 2
ms steps of time history, logged simultaneously to audio recording (with 48kHz sampling) and
real-time frequency analysis. Only the SVAN 979 can meet such a challenge. All data is stored
on a microSD card of any capacity (default is 8GB) .
It is also important to note that unlike other brands which recalculate FFT spectrum to octave
bands, the SVAN 979 performs frequency analysis in real-time, whether in octaves, third octaves
all the way up to 1/12 octaves.
Setting up such advanced measurements can be very complicated but not in the SVAN 979. The
intuitive menu structure of this instrument has been designed to make the measurement
experience a pleasure.

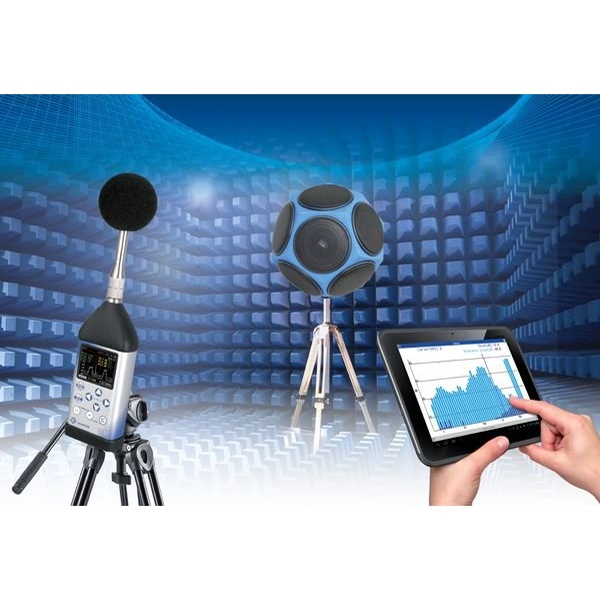

Applications
- Sound measurements
- Environmental noise
- Occupational noise
- Building acoustic
- Ultrasound/infrasound
- High level/low level noise
- Machine vibration
- Tonality measurement
Part No
1) Svantek Model SVAN 979 – Sound & Vibration Analyser Class 1 and 1/1 & 1/3 octave filters, Time
Domain Signal Recording, FFT, RT60
2) Svantek Model SV 979_6 – Tonality analysis option
3) Svantek Model SV 979_ 7 – Loudness analysis option
4) Svantek Model SV 979_8 – Rotation measurement option without Laser Tachometer (RPM)
option
5) Svantek Model SV 979_16 – Selectable low pass, high pass and band pass filters option
6) Svantek Model SV 979_23 – 1/6 & 1/12 octave analysis option
Feature
- Class 1 IEC 61672:2013 sound level measurements
- General vibration measurements (acceleration, velocity and displacement)
- Three parallel independent profiles
- 1/1, 1/3 octave real-time analysis
- 1/6 or 1/12 octave real-time analysis (option)
- FFT real-time analysis 1600 lines in up to 22.4 kHz band
- Time-domain signal recording
- Advanced data logger including spectra’s logging and Audio Events Recording
- Reverberation Time measurements (RT60)
- Pure tone detection (option)
- Acoustic loudness measurements (option)
- Advanced trigger and alarm functions
- User programmable Band-Pass Filters
- Windscreen and extension cable auto detection
- Built-in self vibration measurements
- MicroSD card for mass data memory
- Remote communication by GPRS or LAN & WLAN (optional hardware required)
- GPS time synchronisation (optional hardware required
- USB 1.1 Client interface (real-time PC “front end”)
- Bluetooth, RS 232 and IrDA interfaces
- Super contrast (10000:1) colour OLED display
- Built-in signal generator
- All weather microphone protection SA 279
- Hand held, light weight and robust case
- Easy in use
Specification
Standards : Class 1: IEC 61672-1:2013 (PTB approval 21.21/13.06)
Number of Profiles : 3
Weighting Filters : A, B, C, Z, G
Time constants : Slow, Fast, Impulse
RMS Detector : Digital True RMS detector with Peak detection, resolution 0.1 dB
Microphone : GRAS 40AE, 50 mV/Pa, prepolarised 1/2” condenser microphone
Preamplifier : SV 17 IEPE type / 200V external polaristation compatible
Linear Operating Range : 22 dBA RMS ÷ 140 dBA Peak (in accordance to IEC 61672)
Total Dynamic Measurement : 12 dBA RMS ÷ 140 dBA Peak (typical from noise floor to the max level)
Internal Noise Level : less than 12 dBA RMS
Dynamic Range : >110 dB
Frequency Range : 3.15 Hz ÷ 20 kHz with GRAS 40AE microphone
Meter Mode Results : SPL, Leq, SEL, Lden, LEPd, Overload time, Ltm3, Ltm5, LMax, LMin, LPeak,
Statistics : Ln (L1-L99), complete histogram in meter mode, averaging: linear of with detector (exponential); Ln (L1-L99) statistics in 1/1 or 1/3 octaves (if option is active)
Data Logger : logging of summary results with step from 10 s (auto-save function); logging of time history with step from 2 ms
Audio Recording (option) : Audio events recording during measurement, trigger or continuous mode, 12 / 24 / 48 kHz sampling rate, 16 or 24 bit, wav format
Wave Recording (option) : Time domain signal recording during measurement 12 / 24 / 48 kHz sampling rate, 16 or 24 bit, wav format
Vibration Level Meter
Standards : ISO 10816-1
Number of Profiles : 3
Weighting Filters : Acceleration: HP1, HP3, HP10, Wh; Velocity: Vel1, Vel3, Vel10, Displacement: Dil1,
Dil3, Dil10; Machine filter: VelMF (ISO 10816-1)
RMS Detector : Digital True RMS detector with Peak detection, resolution 0.1 dB; Time constants:
from 100 ms to 10 s
Meter mode results : RMS, MAX, Peak, Peak-Peak, Overload time, MTVVFrequency Range
Accelerometer (option) : SV 80 IEPE, single axis, sensitivity 10 mV/(ms-2) ~ 100 mV/g
Measurement Range : 0.01 ms -2 RMS ÷ 500 ms -2 Peak (with SV 80)
Frequency Range : 1 Hz ÷ 5 kHz (with SV 80 and HP or HP1 filter)
General information
Input : LEMO 7-pin: Direct AC, Direct AC with 200 V polarisation, Direct DC or IEPE type with TEDS
Self-vibration Monitoring : Built-in shock detection
Dynamic Range : 115 dB
Frequency Range : 0.5 Hz ÷ 22.4 kHz, sampling rate 48 kHz ; 0.5 Hz ÷ 40 kHz, sampling rate 96 kHz (ultrasound version)
Memory : 32 MB non-volatile flash type, micro SD card 8 GB (removable & upgradeable)
Display : Colour 320 x 240 pixels, OLED type
Keyboard : 9 push buttons
Communication Interfaces : USB 1.1 client, Bluetooth, RS 232 (with SV 55 option), GPS time
synchronisation and positioning (option), External I/O – AC output (1 V Peak) or Digital Input/Output
(Trigger – Pulse)
Power supply : Four AA rechargeable NiMH batteries (included), USB interface 500 mA HUB, External
power supply 6 V/500 mA DC ÷ 15 V/250 mA DC, SA 17A external battery pack (option)
Environmental Conditions : Temperature from -10 o C to 50 o C ; Humidity up to 90% RH, non-
condensed
Dimensions : 305 mm x 79 x 39 mm (including microphone and preamplifier)
Weight : Approx. 0.6 kg with batteries
Svantek SVAN 979 Sound & Vibration Analyser data sheet
