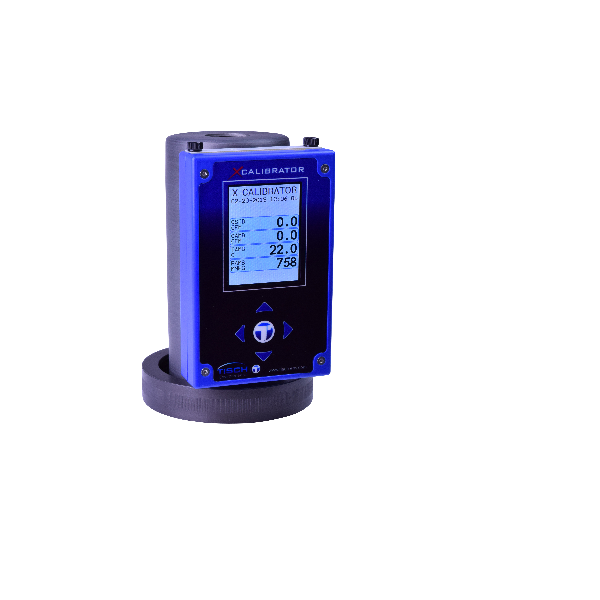

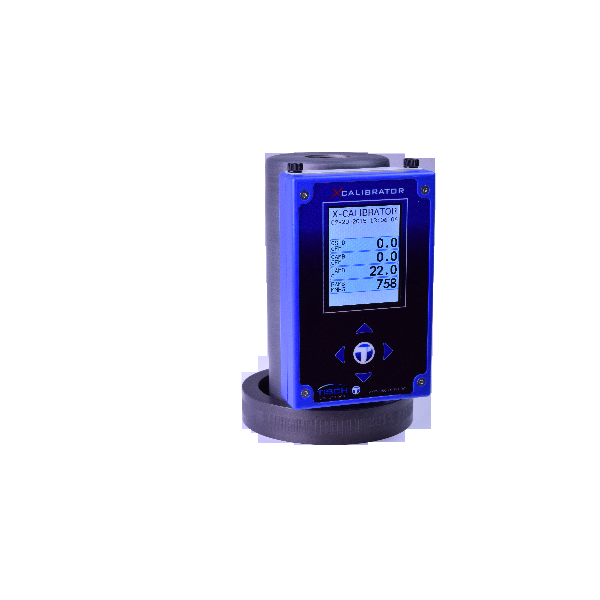

The Tisch Environmental X-calibrator high volume calibrator is a highly accurate and reliable device
for the calibration of PM10, PM2.5, TSP, and industrial hygiene high volume air samplers. Featuring
an LCD display, this instrument is attached to the sampler and instantaneously displays the ambient
flow rate. The X-Calibrator uses integrated barometric pressure and ambient temperature sensors
to accurately calculate the ambient flow rate. Manual flow rate calculations and spreadsheets are
no longer necessary with the Tisch Environmental X-Calibrator.

Features

  • 32 Bit Micro processor for instantaneous flow rate calculation.
  • Eliminates spreadsheets and manual calculations.
  • Heavy duty weather-proof carrying case.
  • Ambient temperature and barometric pressure sensors.



Part No

1) Tisch Model TE-HVC-V – X-Calibrator High Volume with Threaded Ring
2) Tisch Model TE-HVC-H – X-Calibrator Mid Volume 2000P/3000P

Specification
TSP, PM10, PM2.5 Samplers

Model: TE-HVC-V
Description: X-Calibrator High Volume Calibrator
Display: 2.8″ Full Color LCD
Flow Rate: 25-50 CFM
Use With: TSP, PM10, PM2.5 High Volume Air Samplers
Temp Sensor Range/Accuracy : -35°C to + 65°C, +/-2°C
Barometric Pressure Range/Accuracy: 625 to 825 mmHg, +/- 10 mmHg
Orifice Pressure Range/Accuracy: 0-10 inches H2O, 0.5% of Full Scale
Data Interface: Micro USB
Power: 4AA Batteries, Micro USB
Carrying Case: Heavy Duty, Watertight, Custom Foam Insert

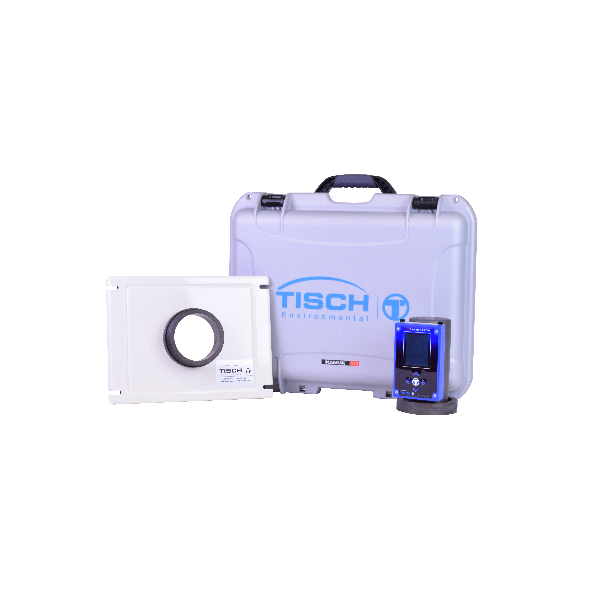

System Includes: X-Calibrator, Top Loading Adapter Plate, Carrying Case
