TSP High Volume Air Sampler
A Total suspended particulate sampler or TSP high volume air sampler is used for the collection of
total suspended particulate matter in ambient air with no preference to size selection. The US EPA
reference method for the collection of TSP is called out in 40 CFR 50, appendix B. The TSP high
volume air sampler collects particulate at a flow rate between 40-60 ft/³min over a constant
sampling period. The TSP high volume air sampler is used to determine the concentration of total
suspended particulates or it can be used to determine the identity of the particulates.
TSP high volume air samplers come in a variety of configurations. The basic system is composed of
an anodized aluminium outdoor shelter with a gabled roof assembly. It will include a timing device
to turn the instrument on and off, a filter holder to hold the filter media in place, a vacuum motor, a
device to control the flow, a pressure recorder to record the flow rate, and an elapsed time indicator
to count the sample time.
The TSP high volume air sampler collects total suspend particulates in the air. The vacuum motors
pulls ambient air onto the 8″ x 10″ glass fibre filter at a flow rate between 36-60 cfm. TSP air
particulate samplers do not use a particle separator which results in the collection of all ambient
particulates. The glass fibre filters are weighed pre and post sample and the weight is used to
determine the total suspended particulate matter.
Part No

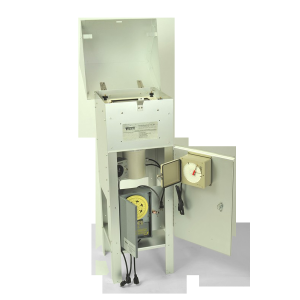

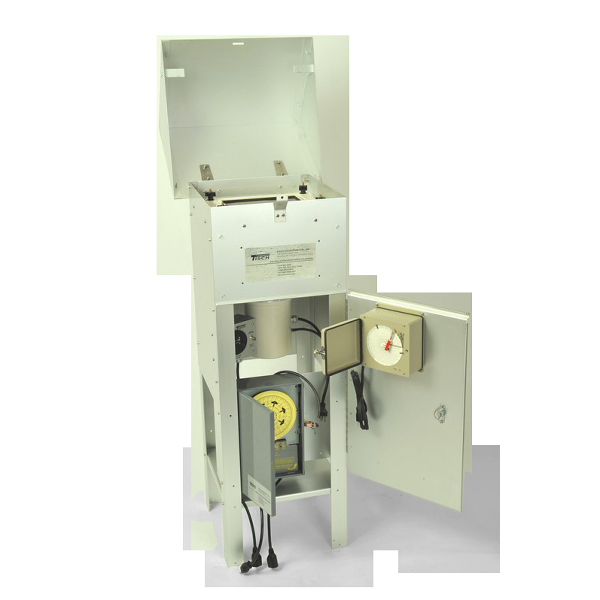

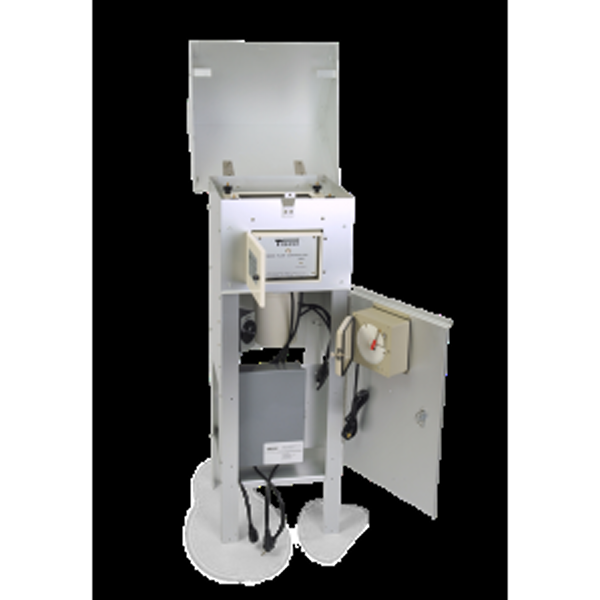

1) Tisch Model TE-5170X – TSP MCF High Volume Air Sampler, Mechanical Timer, 220V 50Hz
2) Tisch Model TE-5170BLX – TSP MFC High Volume Air Sampler, Mechanical Timer, Brushless,
220V 50Hz
3) Tisch Model TE-5170DX – TSP MFC High Volume Air Sampler, Digital Timer, 220V 50Hz
4) Tisch Model TE-5170DBLX – TSP MFC High Volume Air Sampler, Digital Timer, Brushless,
220V 50Hz

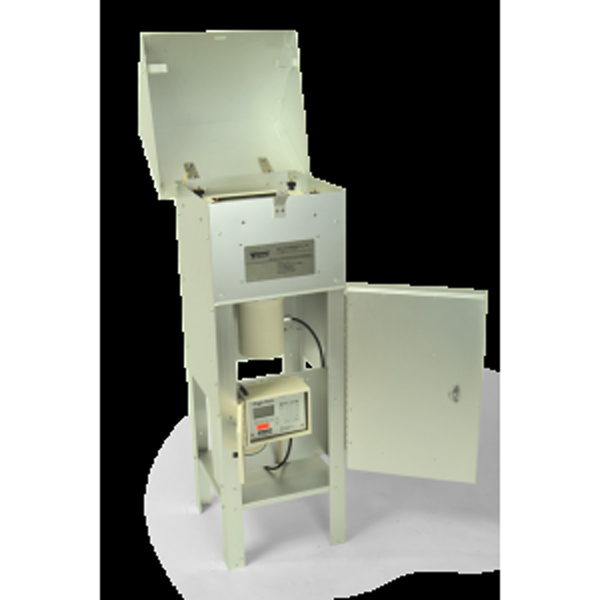

5) Tisch Model TE-HVPLUSX – TSP MFC High Volume Air Sampler, PLUS Technology Digital
Timer, 220V 50Hz
6) Tisch Model TE-HVPLUSBLX – TSP MFC High Volume Air Sampler, PLUS Technology Digital
Timer, Brushless, 220V 50/60Hz

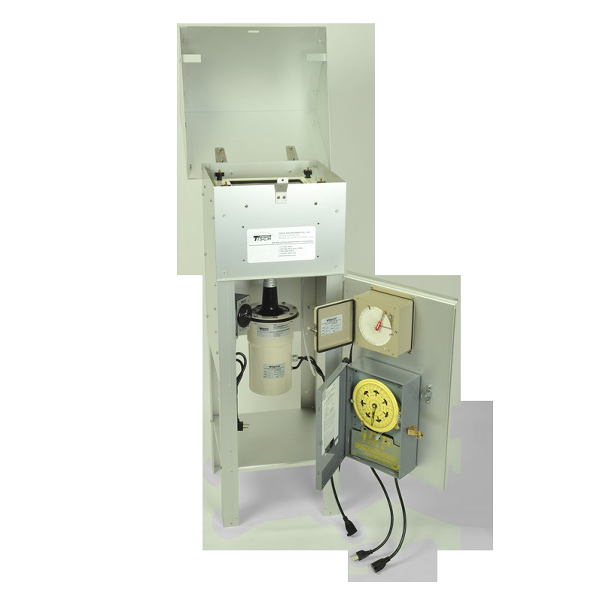

7) Tisch Model TE-5170VX – TSP VFC High Volume Air Sampler, Mechanical Timer, 220V 50Hz

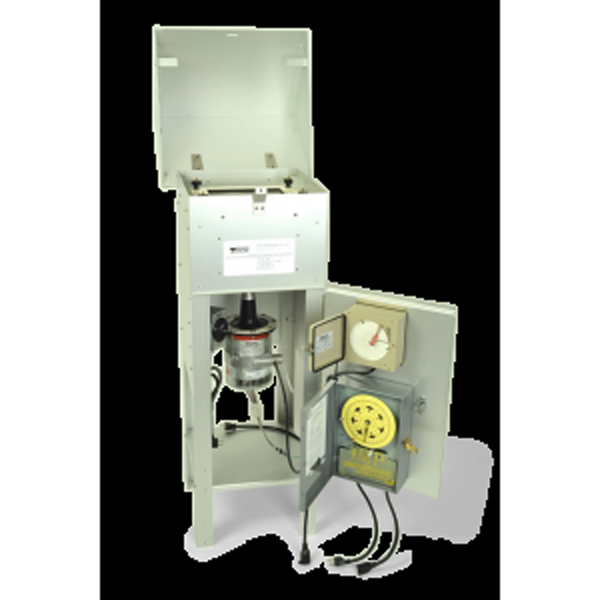

8) Tisch Model TE-5170VBLX – TSP VFC High Volume Air Sampler, Mechanical Timer, Brushless,
220V 50Hz
9) Tisch Model TE-5170DVX – TSP VFC High Volume Air Sampler, Digital Timer, 220V 50/60Hz
10) Tisch Model TE-5170DVBLX – TSP VFC High Volume Air Sampler, Digital Timer, Brushless,
220V 50/60Hz
11) Tisch Model TE-5170VFC+X – TSP VFC High Volume Air Sampler, PLUS Technology Digital
Timer, 220V 50/60Hz
12) Tisch Model TE-5170VFC+BLX – TSP VFC High Volume Air Sampler, PLUS Technology Digital
Timer, Brushless, 220V 50/60Hz
13) Tisch Model TE-5000X – TSP Manual Voltage Controlled High Volume Air Sampler,
Mechanical Timer, 220V 50Hz
14) Tisch Model TE-5200X – TSP Manual Voltage Controlled High Volume Air Sampler, Portable
Tri Pod, 220V 50Hz
15) Tisch Model TE-8550X – Sampl-Saver, Use with any TSP system for elimination of fugitive
dust, 220V
