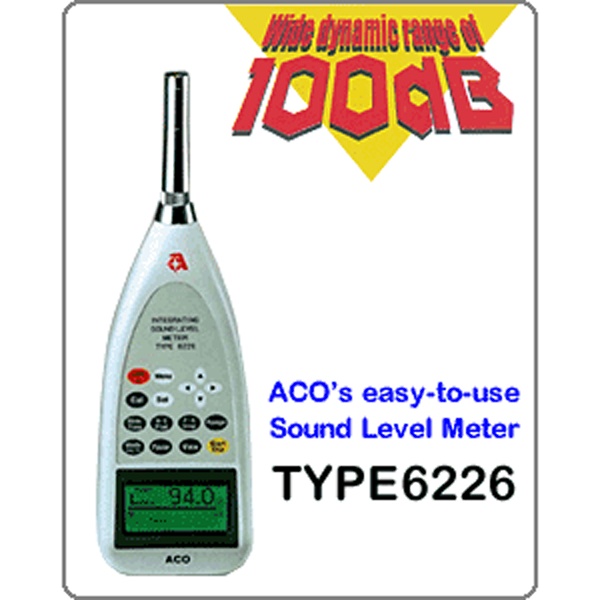

ACO Model 6226 Class 2 Sound Level Meter
This is an integrating-averaging sound level meter appropriate for environmental noise
measurements, equipped with the following measurement functions; equivalent continuous A-
weighted sound pressure level(Leq), sound exposure level (LE), and percentile level(Lx). It is easily
operated to fulfill various functions from measuring the noise of traffic, aircraft and machinery to
quality control and diverse tests. Standard equipment includes an RS-232C interface, and connection
to an outer CPU enables continuous operation.
Measurement results are expressed both by bar graph and numerically on a liquid crystal display.
Further, the wide dynamic range of 100dB eliminates the need for range switching, realizing easier
and more accurate measurements.
Part No.:
1) ACO Model 6226 Class 2 Sound Level Meter

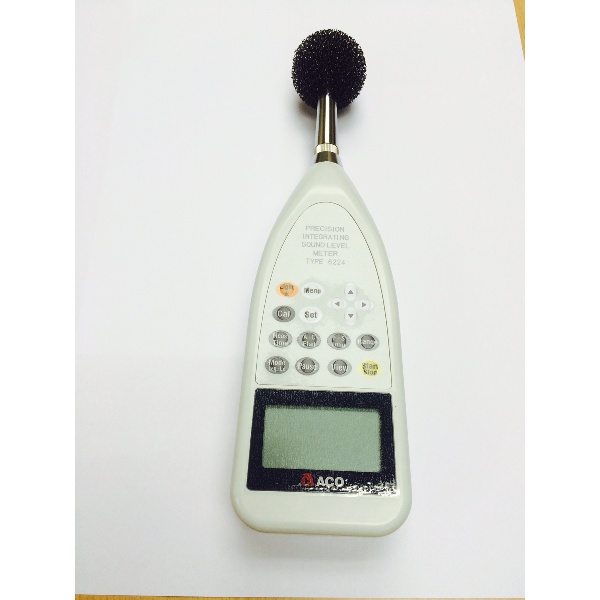

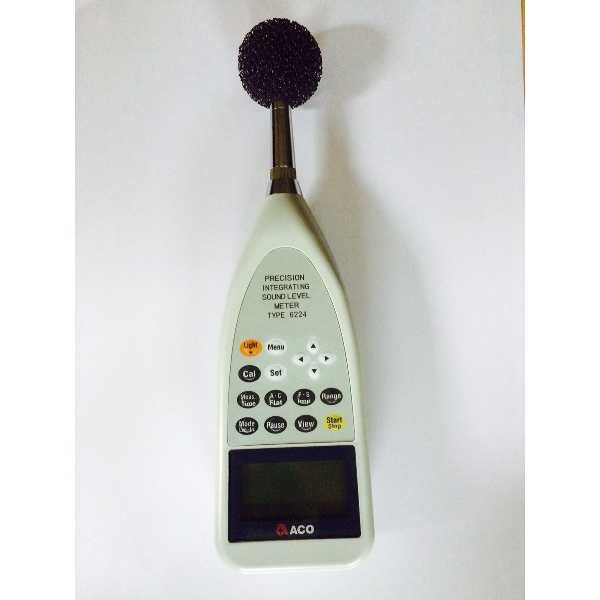

2) ACO Model 6224 Class 1 Sound Level Meter
- Percentile level(Lx) – any 5 selectable values
- Measure equivalent continuous A-weighted sound pressure level capability(Leq)
Measure environmental noise required for securing occupational health capability
- Wide linearity range of 100dB
- Equipped with an RS-232C function, allows for processing of data by PC
- Equipped with memory function, allows for storing up to 15,000 bits of data
- Backlite LCD screen for high-visibility and easy-on-the-eye display
- Excellent cost/performance ratio overpowers comparably priced products
Specification
Applicable Standards : IEC 60651 Type 2
IEC 60804 Type 2
Measurement Functions : Lp : Sound pressure level
Leq : Equivalent continuous A-weighted sound pressurelevel
Le : Sound exposure level
Lmax : Maximum sound level
Lmin : Minimum sound level
Lx : Percentile level(5 values of free select)
Lpeak : Waveform peak hold(C weighting selectable)
Max Measurement Level : 137 dB rms, 130 dB at c.f.3
Measurement Range : 28 – 130dB(A)
33 – 130dB(C)
38 – 130db(F)
Time Weighting : Fast, Slow
Microphone Type : 1/2 electret condenser microphone）
Display : Type: Liquid crystal and Backlight (128×64 points)
Digital Display : 4 digit, Display Period: 1s
Bar Display：display Period: 1s
Display Period : 0.1s
Battery Type : Four 1.5V alkaline cells IEC type LR6, optional AC adapter
Dimension & Weight : 85(W) x 284(H) x 46(D) mm & Approx.420g
