Svantek 104IS Intrinsically Safe Single Channel Personal Noise Dosimeter

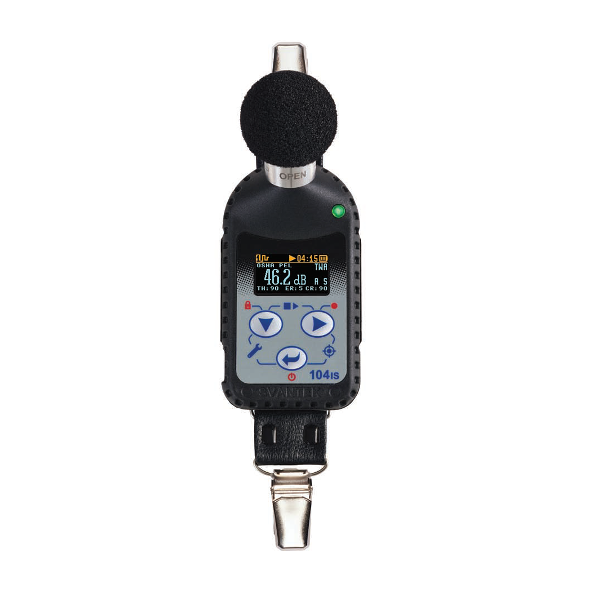

The SV 104IS is the intrinsically safe version of the revolutionary personal noise dosimeter, the SV 104. Both
instruments offer a new approach to occupational health and safety noise monitoring presenting features
such as 1/1 octave band real-time analysis and audio events recording functions which are a new quality in
an instrument of this size. All results are clearly displayed on the amazing OLED screen which offers excellent
visibility even in full daylight or darkness.
This personal dosimeter has a robust 1/2" MEMS microphone enabling easy calibration using most
commonly available acoustic calibrators. The new microphone has a large dynamic range of the 90 dB which
allows to measure noise from 60 dBA to 140 dBA. The long list of microphone advantages includes also the
auto calibration feature and TEDS memory that stores the calibration info in the microphone itself. The auto-
calibration means performing the acoustic calibration automatically once the microphone is inserted into the
calibrator.

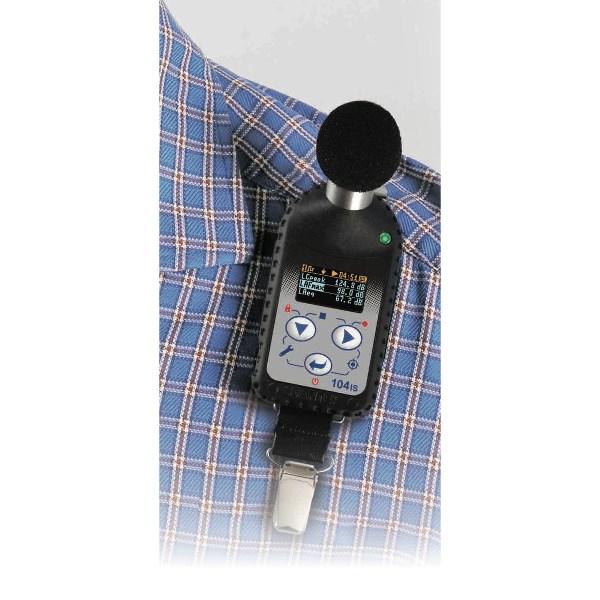

The SV 104IS is a cable-free dosimeter and is typically attached to the user’s shoulder, close to the ear using
the mounting clips supplied. The instrument works with Svantek’s health and safety software package,

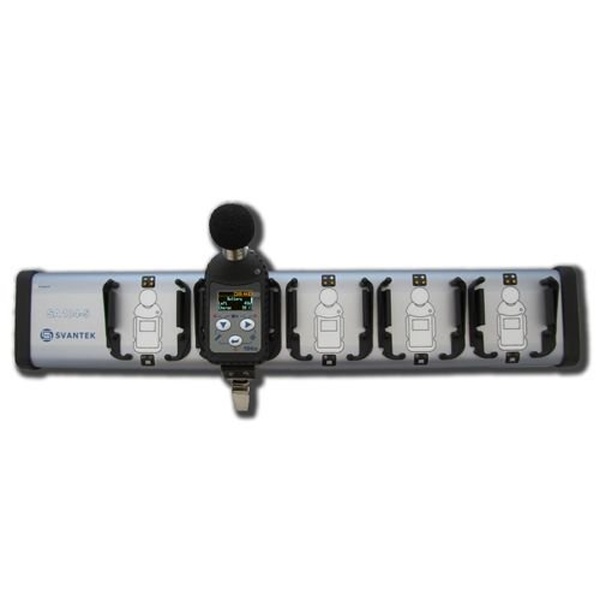

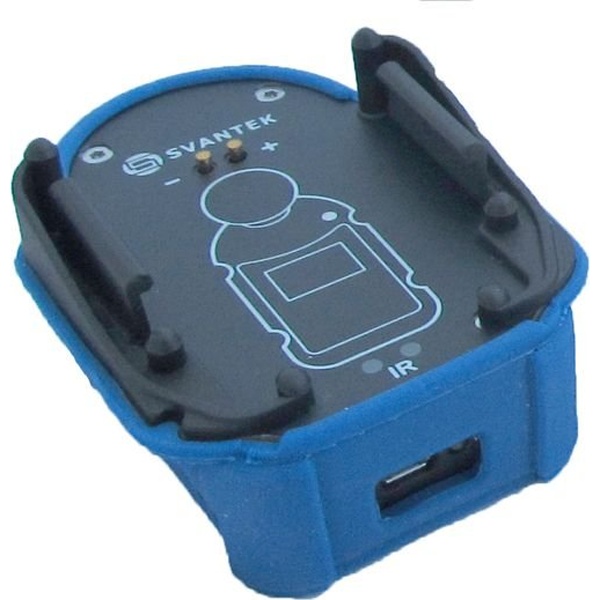

“Supervisor”, that provides various tools for data analysis and reporting. The docking station supports data
transfer to the PC through the infrared interface as well as handles the battery charging. Rechargeable
batteries of SV 104IS are able to power the instrument for 50 hours.
Part No
1) Svantek Model SV 104IS – 1 x Personal noise dosimeter intrinsically safe
2) Svantek Model SV 104IS K5 – 5 x SV104IS Personal noise dosimeters intrinsically safe
3) Svantek Model SF 104IS OCT – 1/1 octave analysis option
4) Svantek Model SF 104IS WAV – Audio events recording option
5) Svantek Model SV144 Carrying case for 5 Dosimeters and Docking Station
6) Svantek Model SV147 Waterproof carrying case for noise dosimeter and single docking station
Features
- Shock resistant MEMS microphone with a life-time warranty
- Intrinsic safety in accordance to ATEX and IECEx
- Personal Noise Dosimeter conforming to IEC 61252 and ANSI S1.25
- Type Approval in accordance to Class 2 IEC 61672
- Single measurement range 60 dBA RMS ÷ 140 dBA Peak
- L (C-A) calculation
- Automatic calibration start (auto-calibration)
- Built-in tri-axial accelerometer for vibration shock (knocking) detection
- High contrast colour OLED display
- Option for octave real-time analysis
- Option for audio events recording (wave format)
- Voice tagging
- Three virtual measurement profiles
- Measurement of L aeq and L cpeak in one profile
- Operational time > 50 hours
- Rechargeable battery
- Extremely compact, light weight and robust case
Specification
Standards : IEC 61252 ed1.1 (2002); ANSI S1.25-1991 (R2007);
Class 2 IEC 61672-1 ed2.0 (2013)
ATEX: EN 50303, EN 60079-0, EN 60079-11, EN 60079-26,
certificate number: FTZU 14 ATEX 0055X
IECEx: IEC 60079-0, IEC 60079-11, IEC 60079-26, certificate number
IECEx FTZU 15.0001X
Weighting : Filters A, C and Z
Time constants : Slow, Fast, Impulse
Exchange rates : 2, 3, 4, 5, 6
Measurement results : Run Time (TIME), Lpeak, Lmax, Lmin, L, DOSE (%), Projected Dose
D_8h, Projected Dose PrDOSE, Leq, LAV, LE, SEL8, E, E_8h, LEPd,
PSEL, Ltm3, Ltm5, Ln statistics, Peak Threshold Counter (PTC), PTP,
Upper Limit Time (ULT), TWA, Projected TWA (PrTWA), Lc-a, OVL
Measurement profiles : 3
Microphone : Class 2 microphone, 1/2" MEMS type
Measurement range : 60 dBA RMS ÷ 140.1 dBA Peak
Frequency range : 20 Hz ÷ 10 kHz
Dynamic range : 90 dB
Data logging : Summary results for the measurement time
Time-history logging of Leq/Max/Min/Peak with 1s logger step
Voice comments : Audio records on demand, created before or after measurement, added to measurement file
Audio recording : Short audio events recording on trigger, 12 kHz sampling rate
(option)
1/1 octave : Real-time analysis in octave band filters, Class 1, IEC 61260
9 filters with centre frequencies from 31.5 Hz to 8 kHz (option)
Basic data
Display : 128 x 64 pixels OLED
Ingress protection : IP 65
Memory : 64 MB
Interfaces : Infrared (docking station necessary)
Keyboard : 3 push buttons
Power supply : Rechargeable cell; operation time > 50 hours 1
Environmental conditions : Temperature from -10 o C to 50 o C
Humidity up to 95 % RH, non-condensed
Dimensions : 88 x 49.5 x 19.2 mm
Weight : 117 grams with batteries
1 depends on the dosimeter settings
Optional Functions
The option for 1/1 OCTAVE real-time analysis allows accurate and correct selection of hearing protectors.
When presented as a spectrogram, the 1/1 octave can be used for quick verification of noise sources in the
time history. It can be activated at any time, by entering an activation code.
The AUDIO EVENTS RECORDING option works during measurement and is logged in parallel to time history
so it can be played back in the PC software. The settings, like triggers or recording time, are adjustable. It can
be activated at any time, by entering an activation code.
Svantek 104IS Single Channel Personal Noise Dosimeter datasheet
