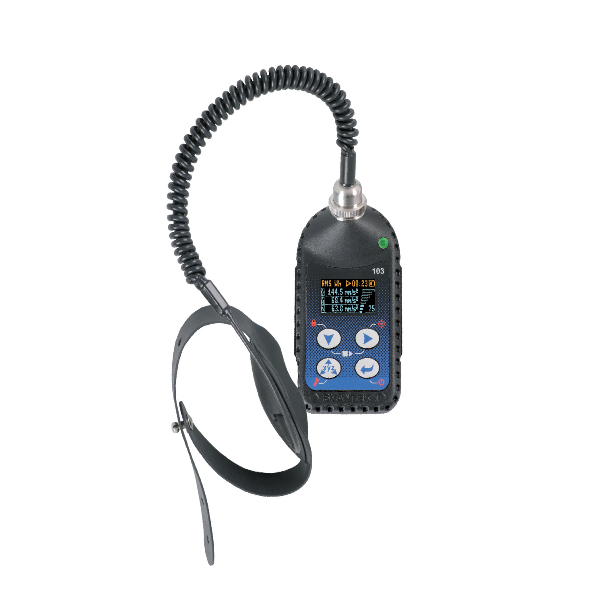

SV 103 Personal Human Vibration Exposure meter is dedicated to hand-arm vibration
measurements. The instrument meets ISO 8041:2005 and is the ideal choice for making
measurements according to ISO 5349 and European Directive 2002/44/EC.

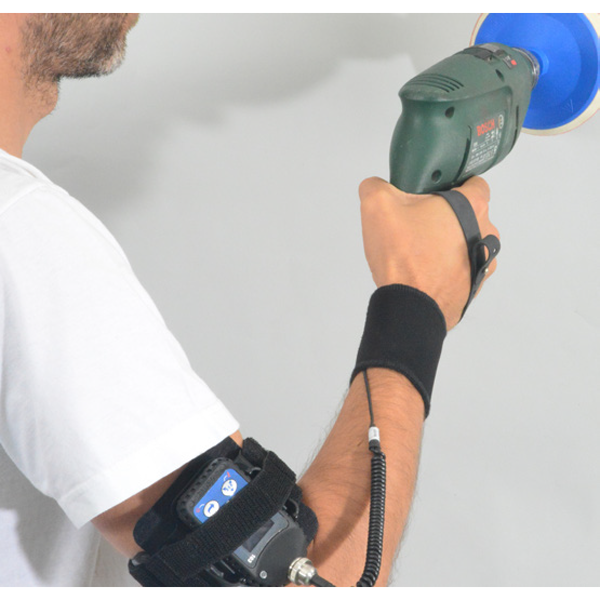

Hand-arm vibration is when mechanical vibrations are transmitted to the human hand when in
contact with the surface of a vibrating machine such as an electric drill. This type of vibration is
particularly harmful as it can cause pathological changes in the nervous system of the hands and
fingers; commonly called white finger disease. As there is no cure for damage caused by
vibration, the only effective regime is to take regular vibration measurements in the hazardous
workplace environment and therefore ensure that damage is not caused in the first place.
However, many currently used assessment methods for hand-arm vibration are subject to a very
high level of uncertainty and typically vibration measurement accuracy can vary in the range of
±20% to 40% which makes a big difference in terms of white finger disease. The SV 103 from

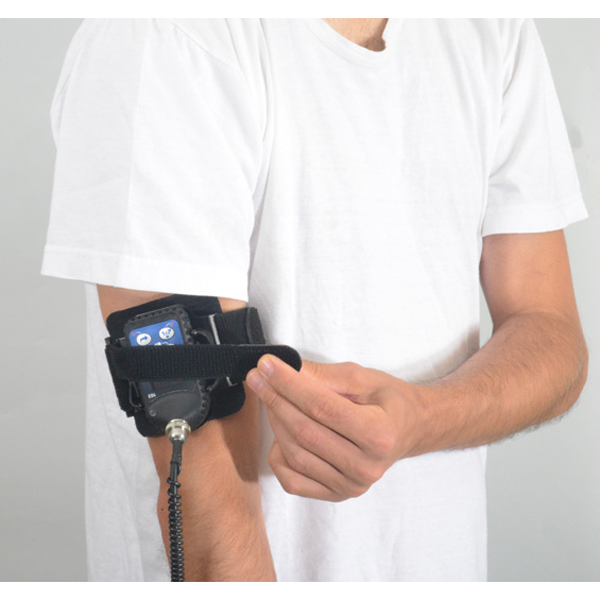

Svantek significantly decreases the measurement uncertainty as the instrument is attached to
the user’s arm and is small enough to take daily vibration exposure measurements without
interfering with normal working activities.

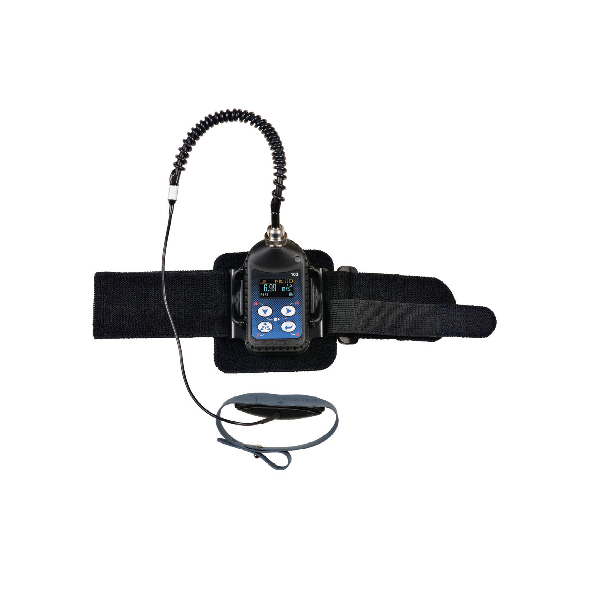

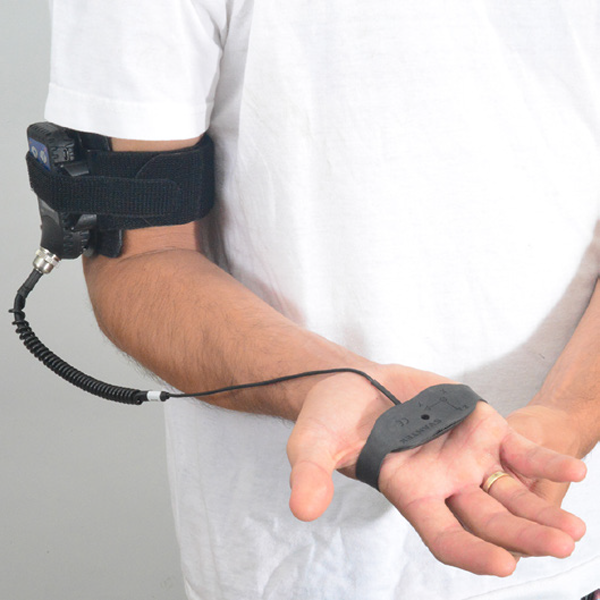

The SV 103 uses our latest accelerometer, the SV 107B, that has a contact force sensor in
addition to the standard accelerometer. Contact force is the sum of grip force and push force and
is therefore a measurement of how firmly a user is holding the tool being measured. This is a
recommendation of the new standards and the reading from the contact force sensor is also
displayed on the screen. The SV 107B accelerometer is based on MEMS, the very latest in
transducer technology. MEMS gives many advantages including shock resistance, very low
power and frequency response down to DC. The usage of MEMS breaks the technological
barrier of a weight and dimensions additionally reducing the cost of the complete system.
The SV 103 is powered using rechargeable batteries charged through the USB interface which
also enables easy interconnection between the instrument and a PC. The measurement data is
safely stored in the large 8 GB memory. The instrument works with our powerful “Supervisor”
software which allows instrument configuration as well as the viewing and exporting of
measurement data and daily vibration exposure recalculations.
The colour OLED screen that offers excellent visibility even in full daylight completes the
exceptional features of this instrument.
Part No
1) Svantek Model SV 103 – Hand-Arm Vibration Dosimeter
2) Svantek Model SV 103 3OCT – 1/1 & 1/3 octave analysis option
3) Svantek Model SV103 WAV – Time domain recording option
4) Svantek Model SV_CV_HA_T – Hand-Arm Vibration Meter with one triaxial accelerometer
calibration
