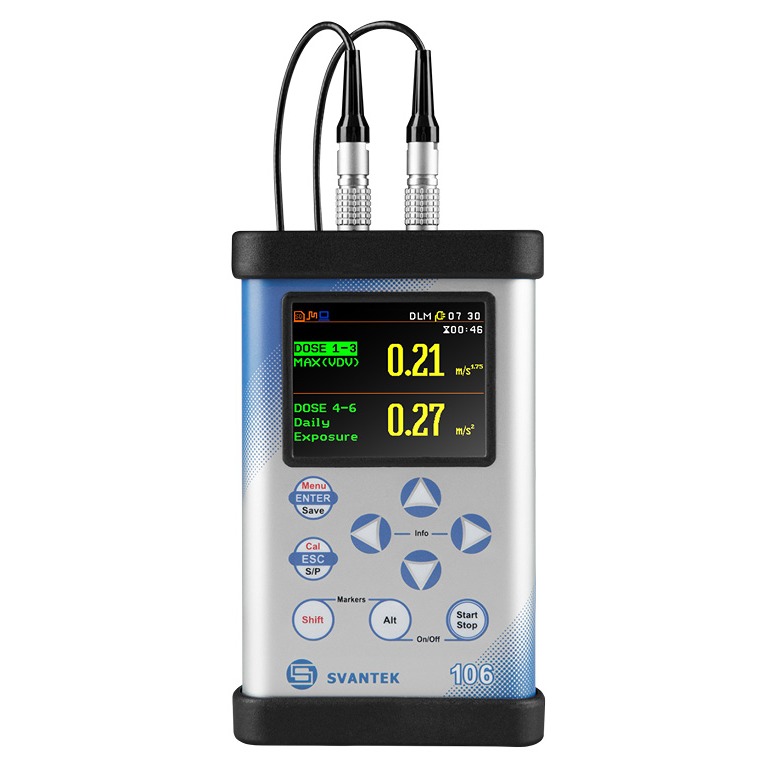

Svantek SV 106A Six-channel Human Vibration Meter & Analyser
SV 106A Six-channel Human Vibration Meter and Analyser meets requirements of ISO
8041:2005 standard and it is an ideal choice for measurements according to ISO 2631-1,2&5,
ISO 5349 and directive 2002/44/EC of European Parliament. This revolutionary, pocket-size
instrument enables simultaneous measurements with two triaxial accelerometers (e.g. both-
hands vibration or triaxial SEAT transmission measurements are possible).
The RMS, Peak, Peak-Peak, VDV, MTVV or dose results such as A(8) and AEQ with all required
weighting filters for human vibration measurements, including band-limiting filters, are available
with this instrument. Using computational power of its digital signal processor, the SV 106A can
perform 1/1 or 1/3 octave real-time analysis simultaneously to the meter mode. Advanced time-
history logging and time-domain signal recording (according to the ISO 2631-5) to the microSD
flash card offer a great data input for detailed signal analysis. Results can be easily downloaded
to PC using USB interface. The instrument works with Svantek’s specialist health and safety
software package, “Supervisor”, and also with the full analysis package SVAN PC++.
The whole-body vibration measurement is easier thanks to SV 38V seat-accelerometer which
can be placed directly on the seat cushion, floor or fixed to the back of the seat. The SV 105B
set with triaxial accelerometer enables hand-arm vibration measurements regardless of the type
of evaluated tool.
Part No
1) Svantek Model SV 106 – 6 channel Human Vibration Meter & Analyser
2) Svantek Model SV 106_LIC_1 – 1/1 octave analysis option
3) Svantek Model SV 106_LIC_2 – 1/3 octave analysis option
4) Svantek Model SV 106_LIC_3 – 1/1 & 1/3 octave analysis option
5) Svantek Model SV 106_LIC_15 – Time domain signal recording option
- Human Vibration Meter meeting ISO 8041:2005, ISO 2631-1,2&5 (including VDV and
MTVV), ISO 5349, Directive 2002/44/EC
- Six channels for acceleration (IEPE type) and two channels for static force
measurements
- Whole-Body measurements with seat accelerometer SV 38V
- Hand-Arm measurements with SV 105A or SV 150 triaxial accelerometers
- Option for time-domain signal recording (meeting ISO 2631-5)
- 1/1 and 1/3 octave real-time analysis (option)
- Advanced data logger including spectral analysis
- Micro SD flash card for mass data storage
- USB 1.1 Client interface
- Integration time programmable up to 24 h
- SvanPC+ software for easy instrument setup and data download
- Easy in use, user friendly interface with colour display
- Pocket size (140 x 83 x 33 millimetres)
- Weight only 390 grams including batteries
Specification
Standards : ISO 8041:2005, ISO 2631-1,2&5, ISO 5349, Directive 2002/44/EC
Meter Mode : RMS, VDV, MTVV or Max, Peak, Peak-Peak, Vector, A(8), Dose, ELV, EAV
Simultaneous measurement in six channels with independent set of filters and detector constants
Filters in Profile (1) : Wd, Wk, Wm, Wb, Wc, Wj, Wg, We, Wf (ISO 2631), Wh (ISO 5349)
Filters in Profile (2) : HP, Vel3 (for PPV measurement) and corresponding Band Limiting filters
RMS & RMQ Detectors : Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB
Time constants : from 100 ms to 10 s
Measurement Range : Transducer dependent: 0.01 ms -2 RMS ÷ 50 ms -2 Peak (with SV 38V and Wd
filter); 0.1 ms -2 RMS ÷ 500 ms -2 Peak (with SV 105A or SV 107 and Wh filter)
Frequency Range : 0.1 Hz ÷ 2 kHz ;(transducer dependent)
Data Logger : Time-history data including meter mode results and spectra
Memory : Internal 16 MB non-volatile memory; Micro SD flash card slot (supports 4 GB ÷ 16 GB
cards)
Display : Colour OLED 2.4”, 320 x 240 pixels; Super contrast 10000 : 1
Interfaces : USB 1.1 Client, Extended I/O – AC output (1 V Peak) or Digital Input/Output (Trigger –
Pulse)
Dimensions : 140 x 83 x 33 mm (without accelerometer)
Weight : Approx. 390 grams including batteries (without accelerometer)
Svantek SV 106 Six-channel Human Vibration Meter data sheet
