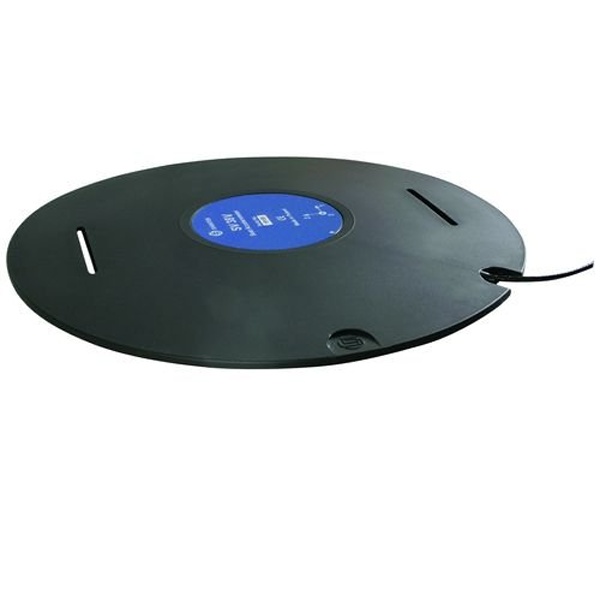

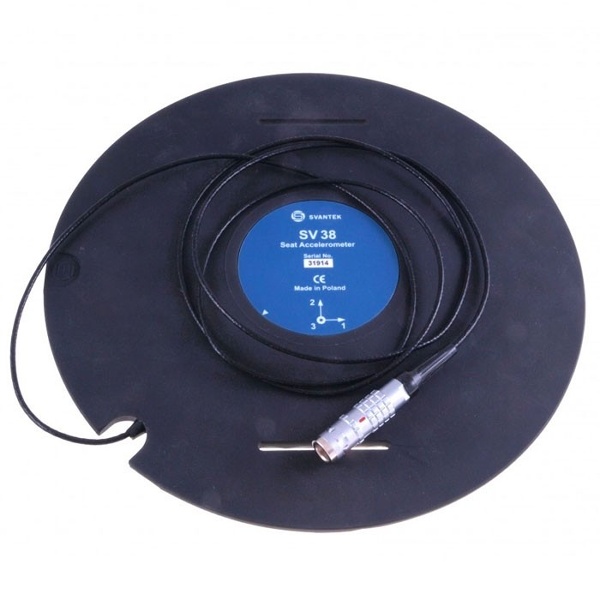

Svantek SV 38 IEPE Whole-Body Seat Accelerometer

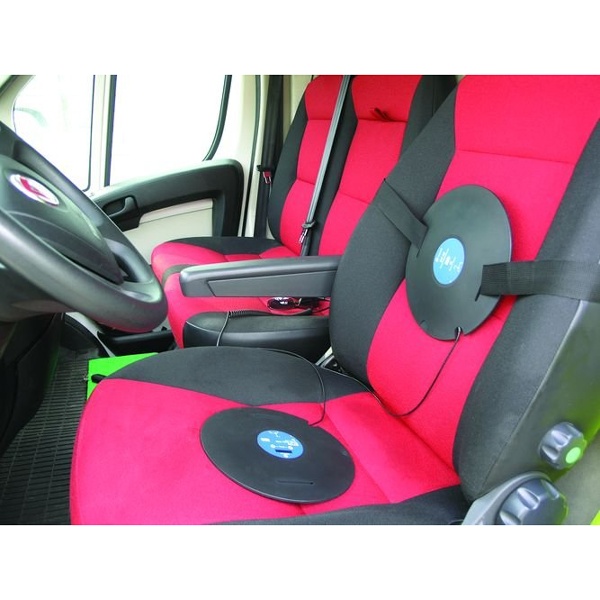

SV 38 IEPE Whole-Body Seat Accelerometeris based on MEMS transducers. It is dedicated for Human
Vibration measurements performed according to ISO 2631-1 with SVAN 958A four channel analyser.
With optional SC 39S cable it is possible to connect SV 38 transducer to any vibration meter/analyser
with IEPE inputs by the means of three separate BNC connectors. Calibration can be performed using
dedicated adapter SA 38 (option).
Part No
1) Svantek Model SV 38V Seat Accelerometer
- Meets ISO 8041 and ISO 2631
- IEPE / ICP powering
- Low price
- Dedicated to SVAN 958 and SVAN 958A
Specification
Performance:
Number of axis : 3
Sensitivity (± 5 %) : 50 mV/ms -2 at 15.915 Hz, HP1
Measurement range : 0.01 ms -2 RMS ÷ 50 ms -2 PEAK
Frequency response : 0.1 Hz ÷ 125 Hz
Resonant frequency : 5.5 kHz (MEMS transducer)
Electrical noise : < 230 μV RMS, HP1 weighting
Sensing element : MEMS
Connector : LEMO 5-pin plug (SV 106 compatible)
Dimensions : 236 mm diameter; thickness from 3.6 mm to 12 mm
Weight : 550 grams (including cable and cushion)
Accessories
Calibration adaptor : SA38 (option)
Svantek SV 38V Seat Accelerometer
