Svantek SV110 Hand-Held Vibration Calibrator

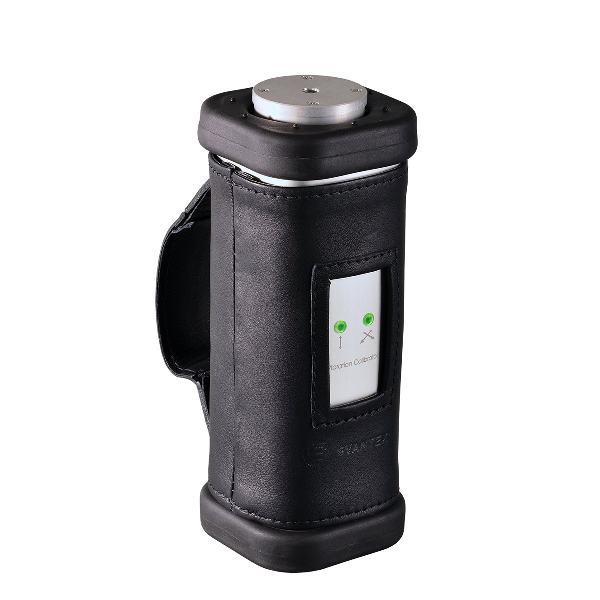

The SV 110 is a hand-held vibration calibrator designed for verification of machine sensors as
well as on-site checks of human vibration accelerometers in accordance to ISO 8041.
The small size of SV 110 enables easy checks of sensors at the machines. Depending on the
selected frequency user may select level of calibration from1 m/s2 to 10 m/s2. Accelerometers
are conveniently attached using mounting stud, mounting disc or dedicated adapter.

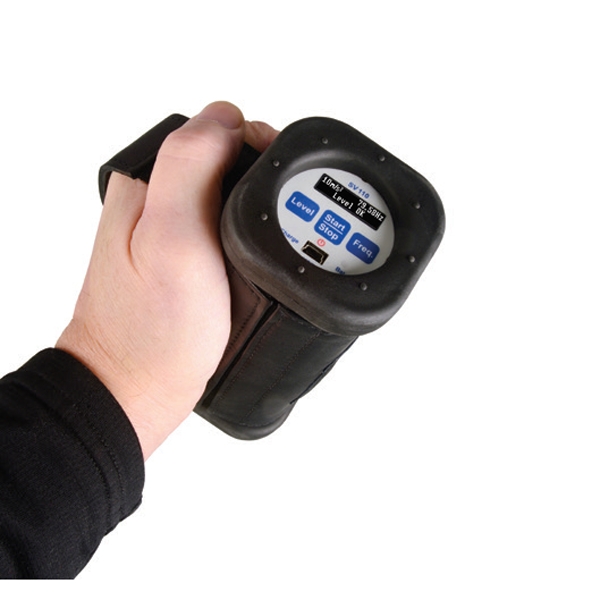

The calibrator menu provides selection between both metric systems ‘g’ and ‘m/s2’. The menu is
simply operated by three push-buttons and small OLED display.
The SV 110 is the perfect solution for calibration checks of hand-arm vibration meters including
Svantek’s SV103 and SV106A. Following the requirements of ISO 8041, the calibrator’s built-in
reference accelerometer measures the cross-axis (transverse) vibrations to detect any
interference to the calibration signal. Faults caused by transverse vibrations are indicated by two
LEDS on the calibrator’s housing. This unique solution ensures stability of both the calibration
level & frequency, independent from the mass of the test object.
The small size of the SV110 makes it very useful for calibration checks of various types of
machine vibration accelerometers. Depending on the selected frequency, the user can select the
level of the calibration from 1 m/s2 to 10 m/s2. Accelerometers are conveniently attached using
either a mounting stud, a mounting disc or a dedicated adapter. The calibrator has built-in
rechargeable batteries that will power it for 12 hours of continuous operation.
Part No
1) Svantek Model SV 110 – Hand-Held Vibration Calibrator
- Hand-held vibration field calibrator
- Easy calibration of hand-arm vibration meters and as well as machine vibration meters
- Calibrator operates on two frequencies 79.6 Hz and 159.2 Hz
- In-field accelerometer checks according to ISO 8041
- Built-in triaxial reference accelerometer
- Cross-axis / transverse vibrations detection
- Powerful shaker enables calibration sensors with mass up to 300 g at 79.6 Hz!
- Automatic fault detection indicated on LED diodes
- Display showing frequency and vibration level
- Robust design, small size and light weight – 1.2 kg only
- Rechargeable battery
- Ready and easy to use in field
Specification
Calibration Signal Parameters
Vibration accelerations : 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 79.58 Hz)
(RMS in ms-2) : 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Vibration velocities : 2, 4, 6, 8 10, 12, 14, 16, 18, 20 (at 79.58 Hz)
(RMS in mm/s) : 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Vibration displacement : 4, 8, 12, 16, 20, 24, 28, 32, 36, 40 (at 79.58 Hz)
(RMS in μm) : 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Amplitude error : Less than ± 3%
Frequency error : Less than ± 0,5%
Temperature range : -10 °C ÷ 50 °C
Humidity range : 25% ÷ 85%
Battery type : Rechargeable 7.2 V / 2 Ah
Continuous operating time : Up to 12 hours
Charging time : 5 hours (with SA 54) or 10 hours (with USB)
Power supply for charger : SA 54 (5V / 2A) or mini USB 500 mA HU
Weight : 1200 g (incl. battery)
Dimensions : 170 x 65 x 65 mm
Optional Adapters
SA 105B : adapter for SV 105B (option)
SA 155 : adapter for SV150 and SV151 (option)
SA 40 : adapter for SV3233A, SV 3143M1 (option)
SA 44 : adapter for SV 50, Dytran 3023M2 (option)
Svantek SV 110 Hand-Held Vibration Calibrator datasheet
