Ntek OMNI Sound Sources Malaysia

Which Ntek OMNI sound source is right for your measurement?

Ntek offers four OMNI omnidirectional sound sources for professional acoustic testing. They share the same core purpose—radiating sound uniformly for insulation and reverberation-time measurements—but differ in portability, output, size and intended environment.

Use the quick guide below to shortlist the right model, then open the product page or request a quotation from AISYS Malaysia.

Choose your OMNI model

Ntek OMNI 2 inch XS front view

OMNI 2” XS

Best for: Confined spaces, NVH, naval, aerospace and highly portable measurement work.

Reference points: Code 30400 · 2.5 kg · 200 × 200 × 300 mm · 117 dBA · designed not to require a tripod.

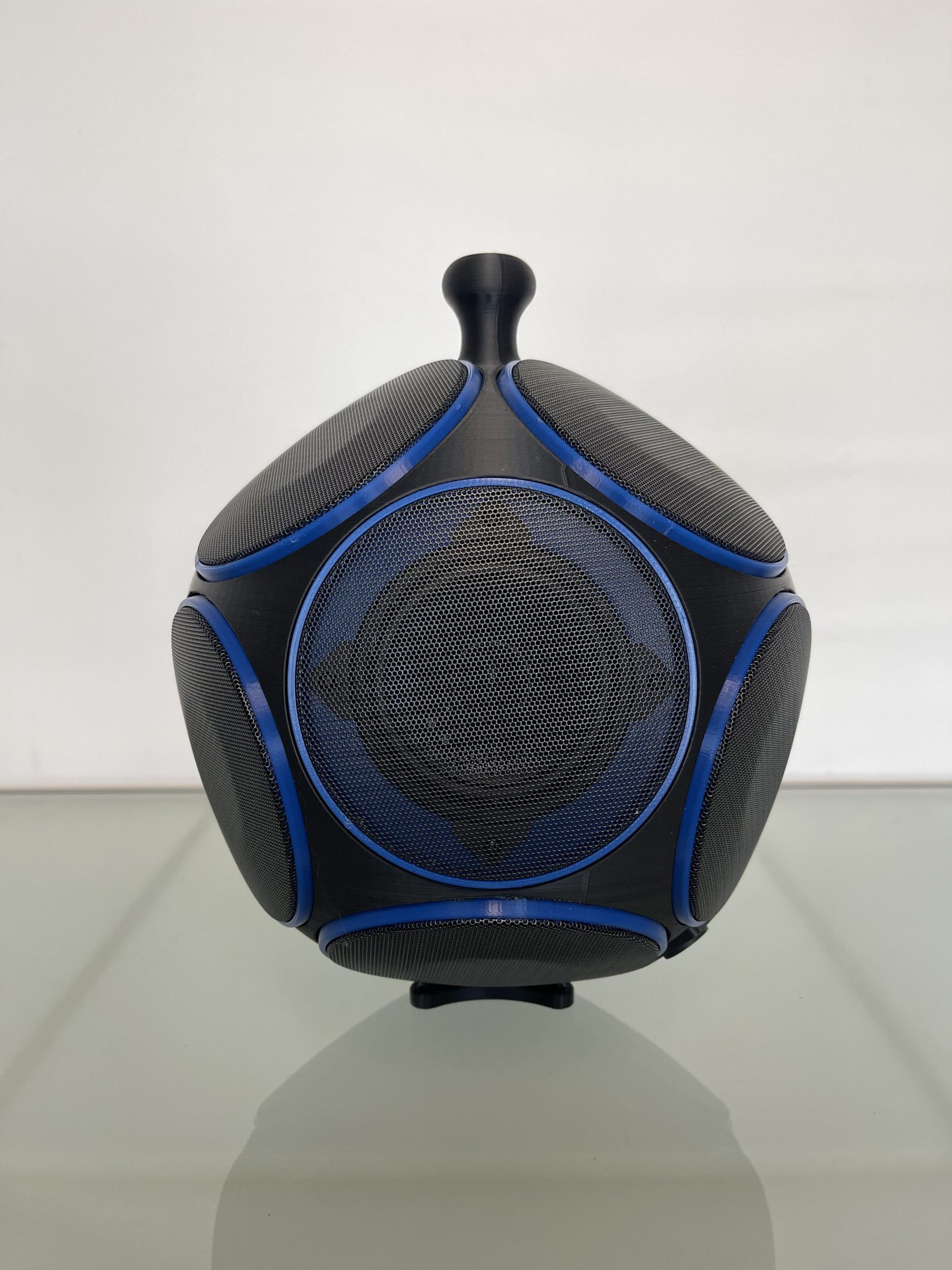

Ntek OMNI 4 inch LT front view

OMNI 4” LT

Best for: General building and architectural acoustics where low weight and portability matter.

Reference points: Code 30200 · 4.5 kg · 280 mm diameter · 123 dBA · twelve loudspeakers with neodymium-magnet transducers.

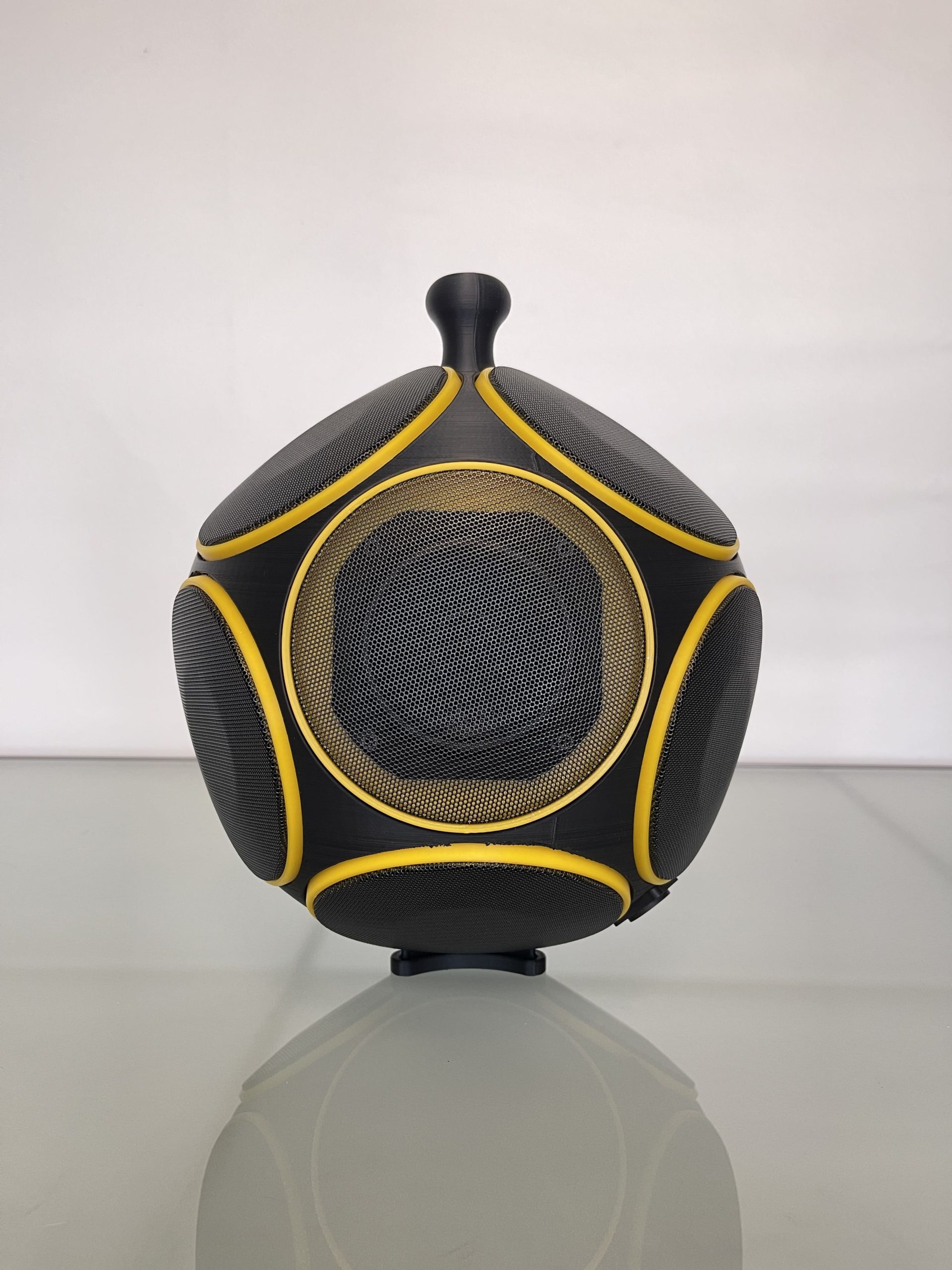

Ntek OMNI 4 inch HP front view

OMNI 4” HP

Best for: Larger testing environments where higher output is needed while keeping the source manageable.

Reference points: Code 30300 · 7.5 kg · 280 mm diameter · 128 dBA · twelve-loudspeaker high-performance array.

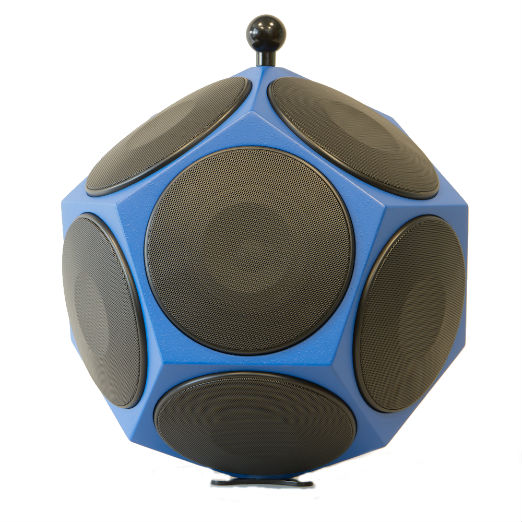

Ntek OMNI 5 inch dodecahedral sound source

OMNI 5”

Best for: Large environments and applications prioritising strong low-frequency output and traditional dodecahedral construction.

Reference points: Code 30001 · 12.5 kg · 350 mm diameter · 127 dBA · 350 + 350 W maximum power.

Quick selection guide

  • Need the smallest and easiest-to-carry source? Start with OMNI 2” XS.
  • Need a lightweight general-purpose source? Consider OMNI 4” LT.
  • Need higher output in a larger testing environment? Consider OMNI 4” HP.
  • Need a larger source with strong low-frequency capability? Consider OMNI 5”.

The OMNI 5” is not automatically the best choice simply because it is larger. OMNI 4” HP has the highest listed maximum sound power level, while OMNI 5” offers a larger traditional source and 350 + 350 W maximum power. Room size, portability, frequency/output requirements and the complete amplifier arrangement should guide the decision.

OMNI sound sources and the rest of the Ntek system

OMNI sources are designed to work with the AMG mini Ion+ noise generator and amplifier. Where a directional source is more appropriate, compare the DIR slim directional loudspeaker. For impact-sound testing, see the TPM pro tapping machine.

Need help selecting an OMNI model?

Tell us the test standard, room or test-environment size, required output, portability requirements and any amplifier, tripod, trolley or case requirements. AISYS Malaysia can then recommend the appropriate Ntek configuration for quotation.

Request a quotation

Frequently asked questions

Which OMNI model is the easiest to carry?

OMNI 2” XS is the lightest at 2.5 kg. OMNI 4” LT is the lightest of the two 4-inch sources at 4.5 kg.

Do I need a tripod?

Ntek states that OMNI 2” XS does not require a tripod for support. The other models should be configured with the appropriate tripod or support accessories for the measurement arrangement.

Can AISYS help select the amplifier and accessories?

Yes. Include the intended OMNI model, application, room size and required accessories in your enquiry so the quotation can be prepared around the complete measurement setup.
